Bulletin No. 901C Updated 11/11

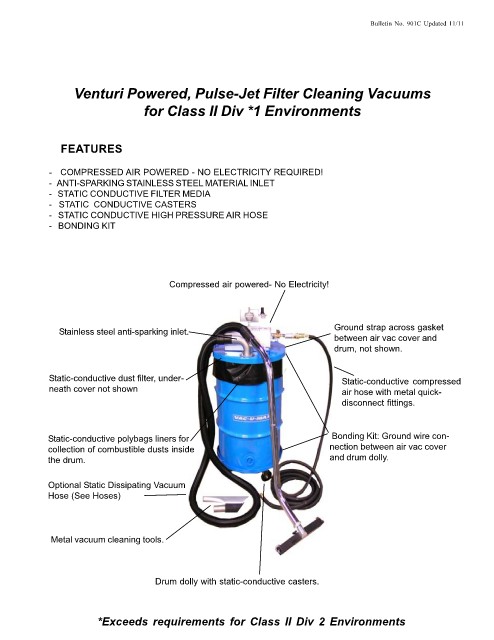

Venturi Powered, Pulse-Jet Filter Cleaning Vacuums

for Class II Div *1 Environments

FEATURES

- COMPRESSED AIR POWERED - NO ELECTRICITY REQUIRED!
- ANTI-SPARKING STAINLESS STEEL MATERIAL INLET
- STATIC CONDUCTIVE FILTER MEDIA
- STATIC CONDUCTIVE CASTERS
- STATIC CONDUCTIVE HIGH PRESSURE AIR HOSE
- BONDING KIT

Compressed air powered- No Electricity!

Stainless steel anti-sparking inlet. Ground strap across gasket
between air vac cover and
drum, not shown.

Static-conductive dust filter, under- Static-conductive compressed
neath cover not shown air hose with metal quick-

disconnect fittings.

Static-conductive polybags liners for Bonding Kit: Ground wire con-
collection of combustible dusts inside nection between air vac cover
the drum. and drum dolly.

Optional Static Dissipating Vacuum
Hose (See Hoses)

Metal vacuum cleaning tools.

Drum dolly with static-conductive casters.

*Exceeds requirements for Class II Div 2 Environments
