TABLE OF CONTENTS
FORM 653-3

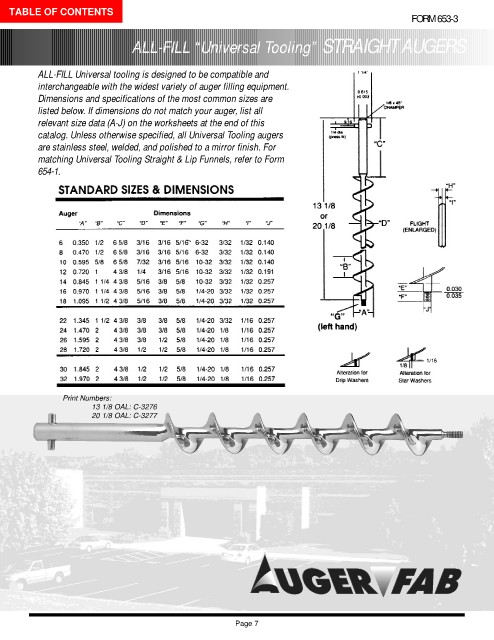

ALL-FILL “Universal Tooling” STRAIGHT AUGERS
ALL-FILL Universal tooling is designed to be compatible and
interchangeable with the widest variety of auger filling equipment.
Dimensions and specifications of the most common sizes are
listed below. If dimensions do not match your auger, list all
relevant size data (A-J) on the worksheets at the end of this
catalog. Unless otherwise specified, all Universal Tooling augers
are stainless steel, welded, and polished to a mirror finish. For
matching Universal Tooling Straight & Lip Funnels, refer to Form
654-1.
Print Numbers:
13 1/8 OAL: C-3276
20 1/8 OAL: C-3277
Page 7
