FORM 654-1

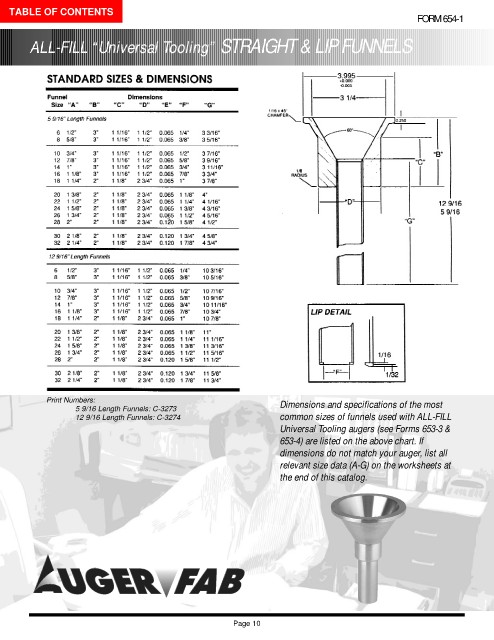

ALL-FILL “Universal Tooling” STRAIGHT & LIP FUNNELS

Print Numbers:
5 9/16 Length Funnels: C-3273 Dimensions and specifications of the most
12 9/16 Length Funnels: C-3274 common sizes of funnels used with ALL-FILL
Universal Tooling augers (see Forms 653-3 &
653-4) are listed on the above chart. If
dimensions do not match your auger, list all
relevant size data (A-G) on the worksheets at
the end of this catalog.

Page 10
