EI

EASTERN INSTRUMENTS

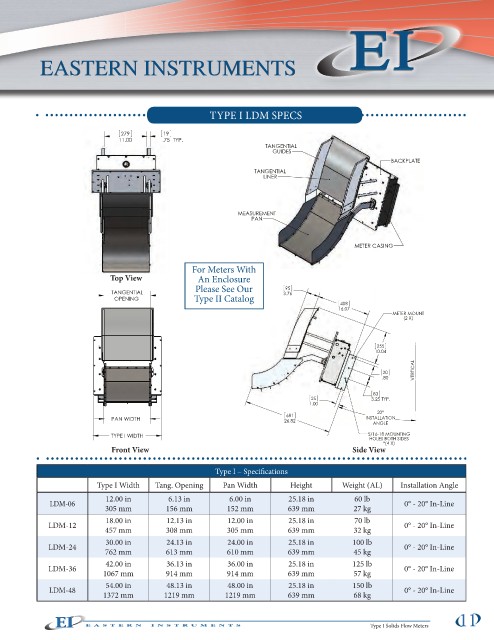

TYPE I LDM SPECS

279 19
11.00 .75 TYP.
TANGENTIAL
GUIDES
BACKPLATE
TANGENTIAL
LINER

MEASUREMENT
PAN

METER CASING

For Meters With
Top View An Enclosure
Please See Our 95
TANGENTIAL 3.76
WIDTH OPENING Type II Catalog
408
16.07
METER MOUNT
(2 X)

255
10.04
VERTICAL
20
.80
83
25 3.25 TYP.
1.00
20°
681
PAN WIDTH 26.82 INSTALLATION
ANGLE
TYPE I WIDTH 5/16-18 MOUNTING
HOLES BOTH SIDES
*(4 X)
Front View Side View
Type I – Specifications
Type I Width Tang. Opening Pan Width Height Weight (AL) Installation Angle
12.00 in 6.13 in 6.00 in 25.18 in 60 lb
LDM-06 0° - 20° In-Line
305 mm 156 mm 152 mm 639 mm 27 kg
18.00 in 12.13 in 12.00 in 25.18 in 70 lb
LDM-12 0° - 20° In-Line
457 mm 308 mm 305 mm 639 mm 32 kg
30.00 in 24.13 in 24.00 in 25.18 in 100 lb
LDM-24 0° - 20° In-Line
762 mm 613 mm 610 mm 639 mm 45 kg
42.00 in 36.13 in 36.00 in 25.18 in 125 lb
LDM-36 0° - 20° In-Line
1067 mm 914 mm 914 mm 639 mm 57 kg
54.00 in 48.13 in 48.00 in 25.18 in 150 lb
LDM-48 0° - 20° In-Line
1372 mm 1219 mm 1219 mm 639 mm 68 kg
11
Type I Solids Flow Meters
