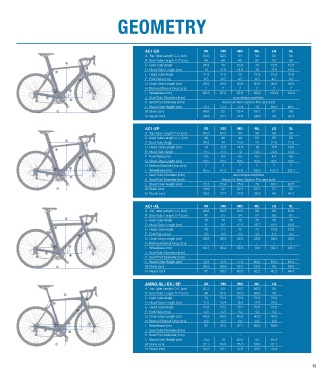

GEOMETRY GEOMETRY

TRIAD-SL XS SM MD ML LG AC1-EX XS SM MD ML LG XL
A Top Tube Length C–C (cm) 50 51 53.5 55.5 57.5 A Top Tube Length C–C (cm) 50.5 52.5 54 56 58 60
B Seat Tube Length C–T (cm) 50 51 53.5 55.5 57.5 B Seat Tube Length C–T (cm) 46 46 49 52 55 58
C Seat Tube Angle 76 76 76 76 76 C Seat Tube Angle 74.5 74 73.5 73 72.5 72.5
D Head Tube Length (cm) 8.5 9.5 11.5 13.5 15.5 D Head Tube Length (cm) 10 12.5 14.5 16 17.5 19.5
E Head Tube Angle 71.5 73 73 73 73 E Head Tube Angle 71.5 71.5 72 72.5 72.5 72.5
F Fork Rake (cm) 4.5 4.5 4.5 4.5 4.5 F Fork Rake (cm) 4.5 4.5 4.5 4.5 4.5 4.5
G Chain Stay Length (cm) 40.5 40.5 40.5 40.5 40.5 G Chain Stay Length (cm) 40.5 40.5 40.5 40.5 40.5 40.5
H Bottom Bracket Drop (cm) 7 7 7 7 7 H Bottom Bracket Drop (cm) 7 7 7 7 7 7
I Wheelbase (cm) 96 95.4 98.5 99 102.8 I Wheelbase (cm) 95.5 97.2 97.8 98.9 100.4 102.4
J Seat Tube Diameter (mm) Aero shape seat tube J Seat Tube Diameter (mm) aero shape seat tube
K Seat Post Diameter (mm) Aerus C4 Pro full carbon aero seat post K Seat Post Diameter (mm) Aerus C4 Aero Carbon Pro seat post
L Stand Over Height (cm) 76.1 77.5 79.5 81.4 83.3 L Stand Over Height (cm) 72.3 73.4 75.8 78 80.1 82.5
M Arm Rest Stack (cm) See frame/stem size chart at right.* M Stack (cm) 49.6 52 52.4 55.7 57 59
N Arm Rest Reach (cm) N Reach (cm) 36.6 37.7 37.9 38.9 40 41.3

TRIAD-EX XS SM MD ML LG AC1-SP XS SM MD ML LG XL
A Top Tube Length C–C (cm) 50 51 53.5 55.5 57.5 A Top Tube Length C–C (cm) 50.5 52.5 54 56 58 60
B Seat Tube Length C–T (cm) 50 51 53.5 55.5 57.5 B Seat Tube Length C–T (cm) 46 46 49 52 55 58
C Seat Tube Angle 76 76 76 76 76 C Seat Tube Angle 74.5 74 73.5 73 72.5 72.5
D Head Tube Length (cm) 8.5 9.5 11.5 13.5 15.5 D Head Tube Length (cm) 10 12.5 14.5 16 17.5 19.5
E Head Tube Angle 71.5 73 73 73 73 E Head Tube Angle 71.5 71.5 72 72.5 72.5 72.5
F Fork Rake (cm) 4.5 4.5 4.5 4.5 4.5 F Fork Rake (cm) 4.5 4.5 4.5 4.5 4.5 4.5
G Chain Stay Length (cm) 40.5 40.5 40.5 40.5 40.5 G Chain Stay Length (cm) 40.5 40.5 40.5 40.5 40.5 40.5
H Bottom Bracket Drop (cm) 7 7 7 7 7 H Bottom Bracket Drop (cm) 7 7 7 7 7 7
I Wheelbase (cm) 96 95.4 98.5 99 102.8 I Wheelbase (cm) 95.5 97.2 97.8 98.9 100.4 102.4
J Seat Tube Diameter (mm) aero shape seat tube J Seat Tube Diameter (mm) aero shape seat tube
K Seat Post Diameter (mm) Aerus C4 Pro full carbon aero seat post K Seat Post Diameter (mm) Aerus C4 Aero Carbon Pro seat post
L Stand Over Height (cm) 76.1 77.5 79.5 81.4 83.3 L Stand Over Height (cm) 72.3 73.4 75.8 78 80.1 82.5
M Stack (cm) 50.3 51.7 53.6 55.5 57.5 M Stack (cm) 49.6 52 52.4 55.7 57 59
N Reach (cm) 37.5 38.1 40.1 41.7 43.2 N Reach (cm) 36.6 37.7 37.9 38.9 40 41.3

TRIAD-SP XS SM MD ML LG AC1-AL XS SM MD ML LG XL
A Top Tube Length C–C (cm) 50 51 53.5 55.5 57.5 A Top Tube Length C–C (cm) 48.5 50.5 53.5 56 58 59.5
B Seat Tube Length C–T (cm) 50 51 53.5 55.5 57.5 B Seat Tube Length C–T (cm) 47 51 54 57 60 61
C Seat Tube Angle 76 76 76 76 76 C Seat Tube Angle 76 75 75 75 75 75
D Head Tube Length (cm) 8.5 9.5 11.5 13.5 15.5 D Head Tube Length (cm) 9 9.5 12.5 15.7 19.2 19.8
E Head Tube Angle 71.5 73 73 73 73 E Head Tube Angle 70 71 72 72 72.5 72.5
F Fork Rake (cm) 4.5 4.5 4.5 4.5 4.5 F Fork Rake (cm) 4.3 4.3 4.3 4.3 4.3 4.3
G Chain Stay Length (cm) 40.5 40.5 40.5 40.5 40.5 G Chain Stay Length (cm) 38.6 38.6 38.6 38.6 38.6 38.6
H Bottom Bracket Drop (cm) 7 7 7 7 7 H Bottom Bracket Drop (cm) 7 7 7 7 7 7
I Wheelbase (cm) 96 95.4 98.5 99 102.8 I Wheelbase (cm) 94.7 95.4 97.8 100 102.1 103.7
J Seat Tube Diameter (mm) aero shape seat tube J Seat Tube Diameter (mm) –
K Seat Post Diameter (mm) Aerus C4 Pro full carbon aero seat post K Seat Post Diameter (mm) –
L Stand Over Height (cm) 76.1 77.5 79.5 81.4 83.3 L Stand Over Height (cm) 72.4 74.3 77.3 80.2 83.5 84.2
M Stack (cm) 50.3 51.7 53.6 55.5 57.5 M Stack (cm) 48.5 49.4 52.5 55.5 59 59.6
N Reach (cm) 37.5 38.1 40.1 41.7 43.2 N Reach (cm) 37 38.3 40.5 42.2 43.2 44.6

TRIAD-AL XS SM MD ML LG XL AXINO-SL / EX / SP XS SM MD ML LG
A Top Tube Length C–C (cm) 48.5 50.5 53.5 56 58 59.5 A Top Tube Length C–C (cm) 51.3 53 54.7 56.3 58
B Seat Tube Length C–T (cm) 47 51 54 57 60 61 B Seat Tube Length C–T (cm) 49 51.5 53.5 56.6 59
C Seat Tube Angle 75 75 75 75 75 75 C Seat Tube Angle 73 73.2 72.8 73.2 73.2
D Head Tube Length (cm) 9 9.6 12.5 15.7 19.2 20.5 D Head Tube Length (cm) 11.5 13.4 15.4 17.9 20.5
E Head Tube Angle 70 71.5 72 72 72.5 72.5 E Head Tube Angle 70.5 72.2 73.1 73.5 73.5
F Fork Rake (cm) 4.3 4.3 4.3 4.3 4.3 4.3 F Fork Rake (cm) 5.3 5.3 4.3 4.3 4.3
G Chain Stay Length (cm) 38.3 38.3 38.3 38.3 38.3 38.3 G Chain Stay Length (cm) 40.5 40.5 40.5 40.5 40.5
H Bottom Bracket Drop (cm) 7 7 7 7 7 7 H Bottom Bracket Drop (cm) 6.8 6.8 6.6 6.8 6.8
I Wheelbase (cm) – – – – – – I Wheelbase (cm) 97 97.2 97.1 98.3 99.9
J Seat Tube Diameter (mm) aero shape seat tube J Seat Tube Diameter (mm) –
K Seat Post Diameter (mm) Aerus SP-129 Aero K Seat Post Diameter (mm) –
L Stand Over Height (cm) – – – – – – L Stand Over Height (cm) 75.5 78 80.3 83 85.4
M Stack (cm) 48.5 49.5 52.5 55.5 59.0 59.6 M Stack (cm) 51.1 53.6 55.5 58.6 61.1
N Reach (cm) 37.0 38.2 40.5 42.1 43.2 44.5 N Reach (cm) 35.8 36.7 37.8 38.5 39.4
