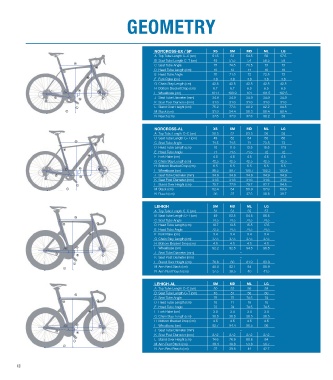

GEOMETRY GEOMETRY

NORCROSS-EX / SP XS SM MD ML LG CX-26
A Top Tube Length C–C (cm) 51.5 53 54.5 56 57.5 A Top Tube Length C–C (cm) 47.5
B Seat Tube Length C–T (cm) 49 51.5 54 56.5 59 B Seat Tube Length C–T (cm) 40
C Seat Tube Angle 75 74.5 73.5 73 73 C Seat Tube Angle 75
D Head Tube Length (cm) 10 12 14 16 18 D Head Tube Length (cm) 10
E Head Tube Angle 70 71.5 72 72.5 73 E Head Tube Angle 70
F Fork Rake (cm) 4.8 4.8 4.8 4.8 4.8 F Fork Rake (cm) 5
G Chain Stay Length (cm) 42.5 42.5 42.5 42.5 42.5 G Chain Stay Length (cm) 39.5
H Bottom Bracket Drop (cm) 6.7 6.7 6.5 6.5 6.5 H Bottom Bracket Drop (cm) 4
I Wheelbase (cm) 101.1 100.9 101 101.5 102.5 I Wheelbase (cm) 95.2
J Seat Tube Diameter (mm) 34.9 34.9 34.9 34.9 34.9 J Seat Tube Diameter (mm) 31.8
K Seat Post Diameter (mm) 31.6 31.6 31.6 31.6 31.6 K Seat Post Diameter (mm) 27.2
L Stand Over Height (cm) 75.2 77.8 80.2 82.2 84.5 L Stand Over Height (cm) 68.8
M Stack (cm) 51.9 54.4 56.3 58.4 60.4 M Arm Rest Stack (cm) 47.3
N Reach (cm) 37.6 37.9 37.8 38.2 39 N Arm Rest Reach (cm) 34.8

NORCROSS-AL XS SM MD ML LG PROSECCO-AL XS SM MD ML LG XL
A Top Tube Length C–C (cm) 50.5 52 53.5 56 58 A Top Tube Length C–C (cm) 49 52 53.5 55.5 57.5 59
B Seat Tube Length C–T (cm) 49 52 54 58 60 B Seat Tube Length C–T (cm) 43 46 49 52 55 58
C Seat Tube Angle 74.5 74.5 74 73.5 73 C Seat Tube Angle 75 74 73.5 73 73 73
D Head Tube Length (cm) 10 11.5 13.5 15.5 17.5 D Head Tube Length (cm) 14 15 17 19 21 23
E Head Tube Angle 71 71.5 71.5 72 72 E Head Tube Angle 70.5 71.5 72 72 72.5 72.5
F Fork Rake (cm) 4.5 4.5 4.5 4.5 4.5 F Fork Rake (cm) 5 4.5 4.5 4.5 4.5 4.5
G Chain Stay Length (cm) 42.5 42.5 42.5 42.5 42.5 G Chain Stay Length (cm) 42.5 42.5 42.5 42.5 42.5 42.5
H Bottom Bracket Drop (cm) 6.5 6.5 6.5 6.5 6.5 H Bottom Bracket Drop (cm) 7 7 7 7 7 7
I Wheelbase (cm) 98.5 99.7 100.7 102.3 103.8 I Wheelbase (cm) 98.6 99.1 99.6 101.1 102.5 104.1
J Seat Tube Diameter (mm) 34.9 34.9 34.9 34.9 34.9 J Seat Tube Diameter (mm) 31.8 31.8 31.8 31.8 31.8 31.8
K Seat Post Diameter (mm) 31.6 31.6 31.6 31.6 31.6 K Seat Post Diameter (mm) 27.2 27.2 27.2 27.2 27.2 27.2
L Stand Over Height (cm) 75.7 77.9 79.7 82.7 84.5 L Stand Over Height (cm) 74.4 77.1 78.9 81.2 83.7 86.1
M Stack (cm) 52.4 54 55.9 57.9 59.8 M Stack (cm) 55.8 57.4 59.5 61.4 63.5 65.4
N Reach (cm) 36 37 37.5 38.8 39.7 N Reach (cm) 34 35.5 35.9 36.7 38.1 39

LEHIGH SM MD ML LG R-650
A Top Tube Length C–C (cm) 51 53 55 57 A Top Tube Length C–C (cm) 47
B Seat Tube Length C–T (cm) 49 52.5 54.5 56.5 B Seat Tube Length C–T (cm) 40
C Seat Tube Angle 74.5 74.5 74.5 74.5 C Seat Tube Angle 75
D Head Tube Length (cm) 10.7 13.5 15.5 17.5 D Head Tube Length (cm) 12
E Head Tube Angle 72.5 74.5 74.5 74.5 E Head Tube Angle 70.5
F Fork Rake (cm) 3.4 3.4 3.4 3.4 F Fork Rake (cm) 4.5
G Chain Stay Length (cm) 37.5 37.5 37.5 37.5 G Chain Stay Length (cm) 39
H Bottom Bracket Drop (cm) 4.5 4.5 4.5 4.5 H Bottom Bracket Drop (cm) 5
I Wheelbase (cm) 92.2 92.5 94.5 96.5 I Wheelbase (cm) 93
J Seat Tube Diameter (mm) – J Seat Tube Diameter (mm) 31.8
K Seat Post Diameter (mm) – K Seat Post Diameter (mm) 27.2
L Stand Over Height (cm) 76.6 80 81.9 83.9 L Stand Over Height (cm) 69
M Arm Rest Stack (cm) 48.8 52.1 54 55.9 M Stack (cm) 49.4
N Arm Rest Reach (cm) 37.5 38.5 40 41.5 N Reach (cm) 33.6

LEHIGH-AL SM MD ML LG PHILLY SM MD ML LG
A Top Tube Length C–C (cm) 50 53 56 59 A Top Tube Length C–C (cm) 56.5 58 59.5 61.5
B Seat Tube Length C–T (cm) 48 51 56 60 B Seat Tube Length C–T (cm) 39.4 43.2 48.3 53.3
C Seat Tube Angle 75 75 74.5 74 C Seat Tube Angle 73.5 73 73 73
D Head Tube Length (cm) 10 11 15 18 D Head Tube Length (cm) 10 10.5 12.5 14
E Head Tube Angle 73 74 74.5 74.5 E Head Tube Angle 70.5 70.5 71 71
F Fork Rake (cm) 3.8 3.4 3.4 3.4 F Fork Rake (cm) 4.5 4.5 4.5 4.5
G Chain Stay Length (cm) 38.5 38.5 38.5 38.5 G Chain Stay Length (cm) 46.5 46.5 46.5 46.5
H Bottom Bracket Drop (cm) 4.5 4.5 4.5 4.5 H Bottom Bracket Drop (cm) 6.5 6.5 6.5 6.5
I Wheelbase (cm) 92.7 94.4 96.5 99 I Wheelbase (cm) 108.5 109.4 110.5 112.5
J Seat Tube Diameter (mm) – J Seat Tube Diameter (mm) 31.8 31.8 31.8 31.8
K Seat Post Diameter (mm) 27.2 27.2 27.2 27.2 K Seat Post Diameter (mm) 27.2 27.2 27.2 27.2
L Stand Over Height (cm) 74.6 76.9 80.6 84 L Stand Over Height (cm) 77.2 78.9 82.4 85.4
M Arm Rest Stack (cm) 48.4 49.8 53.8 56.7 M Arm Rest Stack (cm) 59.9 60.4 62.5 63.9
N Arm Rest Reach (cm) 37 39.6 41 42.7 N Arm Rest Reach (cm) 38.7 39.5 40.4 42
