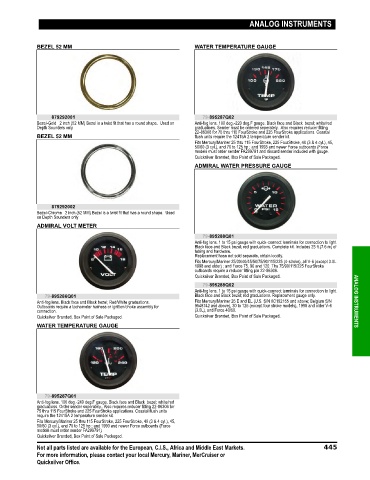

Page 452 - Quicksilver Accesories Guide 2019

ANALOG INSTRUMENTS

BEZEL 52 MM WATER TEMPERATURE GAUGE

879292001 79-895287Q02
Bezel‑Gold 2 inch (52 MM) Bezel is a twist fit that has a round shape. Used on Anti‑fog lens. 100 deg.‑220 deg.F gauge. Black face and Black bezel; white/red
Depth Sounders only graduations. Sender must be ordered seperately. Also requires reducer fitting
22‑86306 for 75 thru 115 FourStroke and 225 FourStroke applications. Coastal
BEZEL 52 MM flush units require the 12415A 2 temperature sender kit.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791 and discard sender included with gauge.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER PRESSURE GAUGE

879292002
Bezel‑Chrome 2 inch (52 MM) Bezel is a twist fit that has a round shape. Used
on Depth Sounders only
ADMIRAL VOLT METER
79-895288Q01
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; red graduations. Complete kit. Includes 25 ft.(7.6 m) of
tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q02
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
79-895286Q01 Black face and Black bezel; red graduations. Replacement gauge only.
Anti‑fog lens. Black face and Black bezel; Red/White graduations. Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N ANALOG INSTRUMENTS
Outboards require a tachometer harness or ignition/choke assembly for 9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
connection. (3.0L), and Force 40/50.
Quicksilver Branded, Box Point of Sale Packaged. Quicksilver Branded, Box Point of Sale Packaged.
WATER TEMPERATURE GAUGE

79-895287Q01
Anti‑fog lens. 100 deg.‑240 deg.F gauge. Black face and Black bezel; white/red
graduations. Order sender seperately.. Also requires reducer fitting 22‑86306 for
75 thru 115 FourStroke and 225 FourStroke applications. Coastal flush units
require the 12415A 2 temperature sender kit.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791)
Quicksilver Branded, Box Point of Sale Packaged.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 445
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
