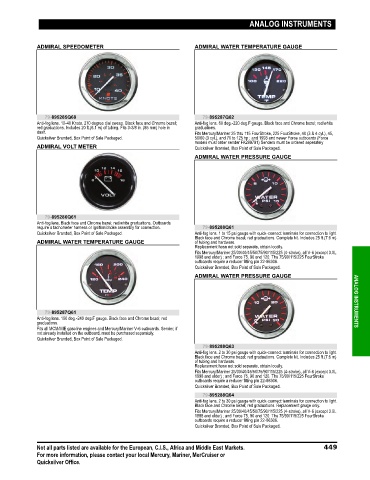

Page 456 - Quicksilver Accesories Guide 2019

ANALOG INSTRUMENTS

ADMIRAL SPEEDOMETER ADMIRAL WATER TEMPERATURE GAUGE

79-895285Q68 79-895287Q62
Anti‑fog lens. 10‑40 Knots. 270 degree dial sweep. Black face and Chrome bezel; Anti‑fog lens. 60 deg.‑220 deg.F gauge. Black face and Chrome bezel; red/white
red graduations. Includes 20 ft.(6.1 m) of tubing. Fits 3‑3/8 in. (85 mm) hole in graduations.
dash. Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
Quicksilver Branded, Box Point of Sale Packaged. 50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791) Senders must be ordered seperately
ADMIRAL VOLT METER Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER PRESSURE GAUGE

79-895286Q61
Anti‑fog lens. Black face and Chrome bezel; red/white graduations. Outboards
require a tachometer harness or ignition/choke assembly for connection. 79-895288Q61
Quicksilver Branded, Box Point of Sale Packaged. Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
Black face and Chrome bezel; red graduations. Complete kit. Includes 25 ft.(7.6 m)
ADMIRAL WATER TEMPERATURE GAUGE of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER PRESSURE GAUGE

79-895287Q61 ANALOG INSTRUMENTS
Anti‑fog lens. 100 deg.‑240 deg.F gauge. Black face and Chrome bezel; red
graduations.
Fits all MCM/MIE gasoline engines and Mercury/Mariner V‑6 outboards. Sender, if
not already installed on the outboard, must be purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q63
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
Black face and Chrome bezel; red graduations. Complete kit. Includes 25 ft.(7.6 m)
of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q64
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
Black face and Chrome bezel; red graduations. Replacement gauge only.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 449
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
