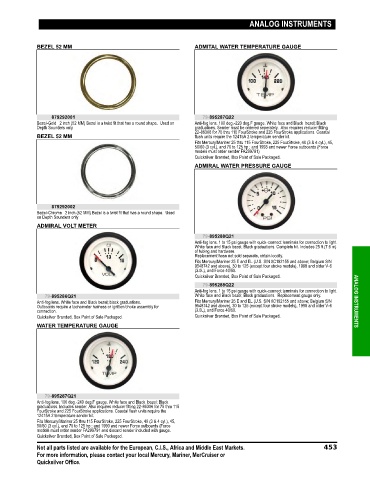

Page 460 - Quicksilver Accesories Guide 2019

ANALOG INSTRUMENTS

BEZEL 52 MM ADMITAL WATER TEMPERATURE GAUGE

879292001 79-895287Q22
Bezel‑Gold 2 inch (52 MM) Bezel is a twist fit that has a round shape. Used on Anti‑fog lens. 100 deg.‑220 deg.F gauge. White face and Black bezel; Black
Depth Sounders only graduations. Sender must be ordered seperately. Also requires reducer fitting
22‑86306 for 75 thru 115 FourStroke and 225 FourStroke applications. Coastal
BEZEL 52 MM flush units require the 12415A 2 temperature sender kit.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791)
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER PRESSURE GAUGE

879292002
Bezel‑Chrome 2 inch (52 MM) Bezel is a twist fit that has a round shape. Used
on Depth Sounders only
ADMIRAL VOLT METER
79-895288Q21
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
White face and Black bezel; Black graduations. Complete kit. Includes 25 ft.(7.6 m)
of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q22
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
79-895286Q21 White face and Black bezel; Black graduations. Replacement gauge only.
Anti‑fog lens. White face and Black bezel; black graduations. Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N ANALOG INSTRUMENTS
Outboards require a tachometer harness or ignition/choke assembly for 9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
connection. (3.0L), and Force 40/50.
Quicksilver Branded, Box Point of Sale Packaged. Quicksilver Branded, Box Point of Sale Packaged.
WATER TEMPERATURE GAUGE

79-895287Q21
Anti‑fog lens. 100 deg.‑240 deg.F gauge. White face and Black bezel; Black
graduations. Includes sender. Also requires reducer fitting 22‑86306 for 75 thru 115
FourStroke and 225 FourStroke applications. Coastal flush units require the
12415A 2 temperature sender kit.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791 and discard sender included with gauge.
Quicksilver Branded, Box Point of Sale Packaged.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 453
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
