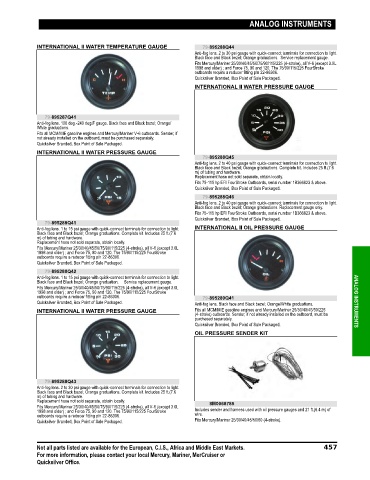

Page 464 - Quicksilver Accesories Guide 2019

ANALOG INSTRUMENTS

INTERNATIONAL II WATER TEMPERATURE GAUGE 79-895288Q44
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; Orange graduations. Service replacement gauge.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
INTERNATIONAL II WATER PRESSURE GAUGE

79-895287Q41
Anti‑fog lens. 100 deg.‑240 deg.F gauge. Black face and Black bezel; Orange/
White graduations.
Fits all MCM/MIE gasoline engines and Mercury/Mariner V‑6 outboards. Sender, if
not already installed on the outboard, must be purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
INTERNATIONAL II WATER PRESSURE GAUGE
79-895288Q45
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; Orange graduations. Complete kit. Includes 25 ft.(7.6
m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q46
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; Orange graduations. Replacement gauge only.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q41
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light. INTERNATIONAL II OIL PRESSURE GAUGE
Black face and Black bezel; Orange graduations. Complete kit. Includes 25 ft.(7.6
m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q42
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; Orange graduation. Service replacement gauge.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306. 79-895289Q41
Quicksilver Branded, Box Point of Sale Packaged. Anti‑fog lens. Black face and Black bezel; Orange/White graduations. ANALOG INSTRUMENTS
INTERNATIONAL II WATER PRESSURE GAUGE Fits all MCM/MIE gasoline engines and Mercury/Mariner 25/30/40/45/50/225
(4‑stroke) outboards. Sender, if not already installed on the outboard, must be
purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
OIL PRESSURE SENDER KIT

79-895288Q43
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for connection to light.
Black face and Black bezel; Orange graduations. Complete kit. Includes 25 ft.(7.6
m) of tubing and hardware.
Replacement hose not sold separate, obtain locally. 8M0068785
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke Includes sender and harness used with oil pressure gauges and 21 ft.(6.4 m) of
outboards require a reducer fitting p/n 22‑86306. wire.
Quicksilver Branded, Box Point of Sale Packaged. Fits Mercury/Mariner 25/30/40/45/50/60 (4‑stroke).

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 457
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
