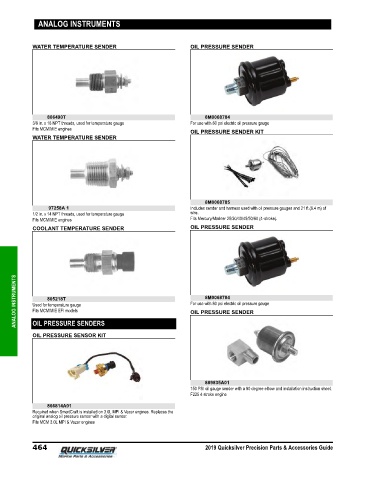

Page 471 - Quicksilver Accesories Guide 2019

ANALOG INSTRUMENTS

WATER TEMPERATURE SENDER OIL PRESSURE SENDER

806490T 8M0068784
3/8 in. x 18 NPT threads, used for temperature gauge For use with 80 psi electric oil pressure gauge
Fits MCM/MIE engines
OIL PRESSURE SENDER KIT
WATER TEMPERATURE SENDER

8M0068785
97258A 1 Includes sender and harness used with oil pressure gauges and 21 ft.(6.4 m) of
1/2 in. x 14 NPT threads, used for temperature gauge wire.
Fits MCM/MIE engines Fits Mercury/Mariner 25/30/40/45/50/60 (4‑stroke).
COOLANT TEMPERATURE SENDER OIL PRESSURE SENDER

ANALOG INSTRUMENTS Used for temperature gauge For use with 80 psi electric oil pressure gauge

8M0068784
805218T
Fits MCM/MIE EFI models
OIL PRESSURE SENDER
OIL PRESSURE SENDERS
OIL PRESSURE SENSOR KIT

889835A01
150 PSI oil gauge sender with a 90 degree elbow and installation instruction sheet.
F225 4 stroke engine
866814A01
Required when SmartCraft is installed on 3.0L MPI & Vazer engines. Replaces the
original analog oil pressure sensor with a digital sensor.
Fits MCM 3.0L MPI & Vazer engines

464 2019 Quicksilver Precision Parts & Accessories Guide
