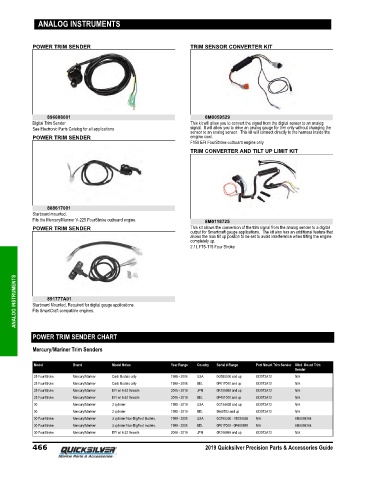

Page 473 - Quicksilver Accesories Guide 2019

ANALOG INSTRUMENTS

POWER TRIM SENDER TRIM SENSOR CONVERTER KIT

896688001 8M0059529
Digital Trim Sender This kit will allow you to convert the signal from the digital sensor to an analog
See Electronic Parts Catalog for all applications signal. It will allow you to drive an analog gauge for trim only without changing the
sensor to an analog sensor. This kit will connect directly to the harness inside the
POWER TRIM SENDER emgine cowl.
F150 EFI FourStroke outboard engine only
TRIM CONVERTER AND TILT UP LIMIT KIT

888617001
Starboard mounted.
Fits the Mercury/Mariner V‑225 FourStroke outboard engine. 8M0118725
POWER TRIM SENDER This kit allows the conversion of the trim signal from the analog sender to a digital
output for Smartcraft gauge applications. The kit also has an additional feature that
allows the max tilt up positon to be set to avoid interference when tilting the engine
completely up.
2.1L F75‑115 Four Stroke

ANALOG INSTRUMENTS Starboard Mounted. Required for digital gauge applications.

891777A01

Fits SmartCraft compatible engines.

POWER TRIM SENDER CHART
Mercury/Mariner Trim Senders

Model Brand Model Notes Year Range Country Serial # Range Port Mount Trim Sender Stbd. Mount Trim
Sender
25 FourStroke Mercury/Mariner Carb Models only 1998 - 2006 USA 0G590000 and up 822573A12 N/A
25 FourStroke Mercury/Mariner Carb Models only 1999 - 2006 BEL 0P017000 and up 822573A12 N/A
25 FourStroke Mercury/Mariner EFI w/ 6-32 threads 2006 - 2019 JPN 0R106999 and up 822573A12 N/A
25 FourStroke Mercury/Mariner EFI w/ 6-32 threads 2006 - 2019 BEL 0P401000 and up 822573A12 N/A
30 Mercury/Mariner 2 cylinder 1995 - 2019 USA 0G124405 and up 822573A12 N/A
30 Mercury/Mariner 2 cylinder 1995 - 2019 BEL 9840763 and up 822573A12 N/A
30 FourStroke Mercury/Mariner 3 cylinder Non-BigFoot Models. 1999 - 2005 USA 0G760300 - 1B226999 N/A 8M0098264
30 FourStroke Mercury/Mariner 3 cylinder Non-BigFoot models. 1999 - 2005 BEL 0P017000 - 0P400999 N/A 8M0098264
30 FourStroke Mercury/Mariner EFI w/ 6-32 threads 2006 - 2019 JPN 0R106999 and up 822573A12 N/A
466 2019 Quicksilver Precision Parts & Accessories Guide
