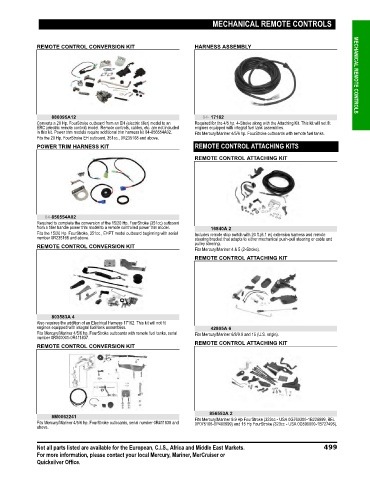

MECHANICAL REMOTE CONTROLS



             REMOTE CONTROL CONVERSION KIT                       HARNESS ASSEMBLY                                     MECHANICAL REMOTE CONTROLS













                  880095A12                                         84- 17162
             Converts a 20 Hp. FourStroke outboard from an EH (electric tiller) model to an  Required for the 4/5 hp. 4‑Stroke along with the Attaching Kit. This kit will not fit
             ERC (electric remote control) model. Remote controls, cables, etc. are not included  engines equipped with integral fuel tank assemblies.
             in this kit. Power trim models require additional trim harness kit 84‑856554A02.  Fits Mercury/Mariner 4/5/6 hp. FourStroke outboards with remote fuel tanks.
             Fits the 20 Hp. FourStroke EH outboard, 351cc., 0R235168 and above.
             POWER TRIM HARNESS KIT                              REMOTE CONTROL ATTACHING KITS
                                                                 REMOTE CONTROL ATTACHING KIT










                84-856554A02
             Required to complete the conversion of the 15/20 Hp. FourStroke (351cc) outboard
             from a tiller handle power trim model to a remote controlled power trim model.   16840A 2
             Fits the 15/20 Hp. FourStroke, 351cc., EHPT model outboard beginning with serial  Includes remote stop switch with 20 ft.(6.1 m) extension harness and remote
             number 0R235168 and above.                          steering bracket that adapts to either mechanical push‑pull steering or cable and
             REMOTE CONTROL CONVERSION KIT                       pulley steering.
                                                                 Fits Mercury/Mariner 4 & 5 (2‑Stroke).
                                                                 REMOTE CONTROL ATTACHING KIT










                  803583A 4
             Also requires the addition of an Electrical Harness 17162. This kit will not fit
             engines equipped with integral fuel tank assemblies.      42805A 6
             Fits Mercury/Mariner 4/5/6 hp. FourStroke outboards with remote fuel tanks, serial  Fits Mercury/Mariner 6/8/9.9 and 15 (U.S. origin).
             number 0R000001‑0R411837.
                                                                 REMOTE CONTROL ATTACHING KIT
             REMOTE CONTROL CONVERSION KIT












                                                                      856553A 2
                  8M0062241
             Fits Mercury/Mariner 4/5/6 hp. FourStroke outboards, serial number 0R411838 and  Fits Mercury/Mariner 9.9 Hp FourStroke (323cc ‑ USA 0G760300‑1B226999, BEL
                                                                 0P075166‑0P400999) and 15 Hp FourStroke (323cc ‑ USA 0G590000‑1B727495).
             above.

             Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets.   499
             For more information, please contact your local Mercury, Mariner, MerCruiser or
             Quicksilver Office.
