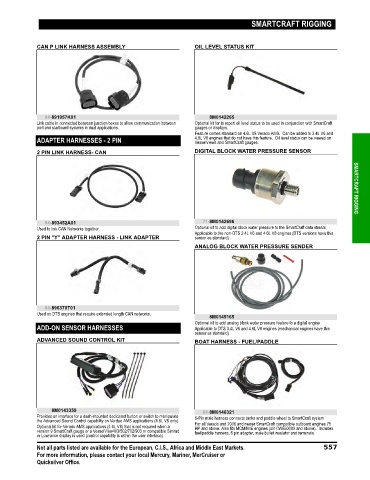

SMARTCRAFT RIGGING



             CAN P LINK HARNESS ASSEMBLY                         OIL LEVEL STATUS KIT













                84-891957K01                                          8M0142265
             Link cable in connected between junction boxes to allow communication between  Optional kit for to report oil level status to be used in conjunction with SmartCraft
             port and starboard systems in dual applications.    gauges or displays.
                                                                 Feature comes standard on 4.6L V8 Verado AMS.  Can be added to 3.4L V6 and
             ADAPTER HARNESSES - 2 PIN                           4.8L V8 engines that do not have this feature.  Oil level status can be viewed on
                                                                 VesselViews and SmartCraft gauges.
             2 PIN LINK HARNESS- CAN                             DIGITAL BLOCK WATER PRESSURE SENSOR












                84-893452A01                                        71-8M0142696                                      SMARTCRAFT RIGGING
             Used to link CAN Networks together.                 Optional kit to add digital block water pressure to the SmartCraft data stream
                                                                 Applicable to the non‑DTS 3.4L V6 and 4.6L V8 engines (DTS versions have this
             2 PIN "Y" ADAPTER HARNESS - LINK ADAPTER            sensor as standard)
                                                                 ANALOG BLOCK WATER PRESSURE SENDER











                84-896370T01
             Used on DTS engines that require extended length CAN networks.
                                                                      8M0145165
                                                                 Optional kit to add analog block water pressure feature to a digital engine
             ADD-ON SENSOR HARNESSES                             Applicable to DTS 3.4L V6 and 4.6L V8 engines (mechanical engines have this
                                                                 sensor as standard)
             ADVANCED SOUND CONTROL KIT                          BOAT HARNESS - FUEL/PADDLE












                  8M0143359                                         84-8M0146321
             Provides an interface for a dash‑mounted dedicated button or switch to manipulate  6‑Pin male harness connects tanks and paddle wheel to SmartCraft system
             the Advanced Sound Control capability on Verdao AMS applications (4.6L V8 only)
             Optional kit for Verado AMS applications (4.6L V8) that is not required when a  For all Verado and 2006 and newer SmartCraft compatible outboard engines 75
                                                                 HP and above. Also fits MCM/MIE engines (s/n 0W650000 and above).  Includes
             version 9 SmartCraft gauge or a VesselView403/502/702/903 or compatible Simrad  fuel/paddle harness, 6 pin adapter, male bullet insulator and terminals.
             or Lowrance display is used (control capability is within the user interface).
             Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets.   557
             For more information, please contact your local Mercury, Mariner, MerCruiser or
             Quicksilver Office.
