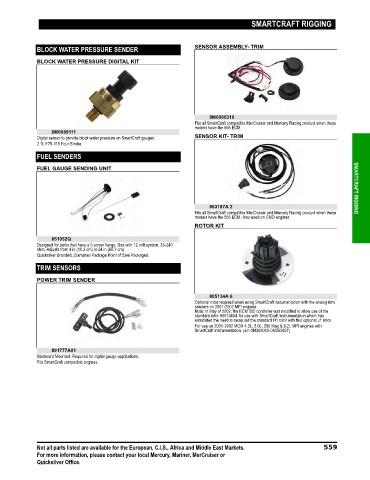

Page 566 - Quicksilver Accesories Guide 2019

SMARTCRAFT RIGGING

BLOCK WATER PRESSURE SENDER SENSOR ASSEMBLY- TRIM

BLOCK WATER PRESSURE DIGITAL KIT

8M0095310
Fits all SmartCraft compatible MerCruiser and Mercury Racing product when these
models have the 555 ECM.
8M0089111
Digital sensor to provide block water pressure on SmartCraft gauges. SENSOR KIT- TRIM
2.1L F75‑115 Four Stroke
FUEL SENDERS

FUEL GAUGE SENDING UNIT

863187A 2 SMARTCRAFT RIGGING
Fits all SmartCraft compatible MerCruiser and Mercury Racing product when these
models have the 555 ECM. Also used on CMD engines
ROTOR KIT

851052Q
Designed for tanks that have a 5 screw flange. Use with 12 volt system. 33‑240
ohm. Adjusts from 4 in.(10.2 cm) to 24 in.(60.7 cm)
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
TRIM SENSORS

POWER TRIM SENDER

805134A 6
Optional rotor required when using SmartCraft instumentation with the analog trim
senders on 2001‑2002 MPI engines.
Note: In May of 2002, the ECM 555 controller was modified to allow use of the
standard rotor 805134A4 for use with SmartCraft instrumentation which has
eliminated the need to swap out the standard H1 rotor with this optional J1 rotor.
For use on 2001‑2002 MCM 4.3L, 5.0L, 350 Mag & 6.2L MPI engines with
SmartCraft instrumentation. (s/n 0M300000‑0M362927)

891777A01
Starboard Mounted. Required for digital gauge applications.
Fits SmartCraft compatible engines.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 559
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
