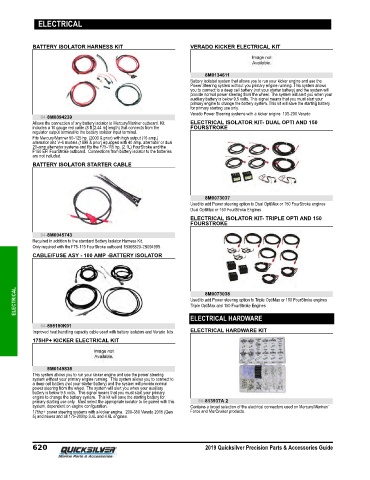

Page 627 - Quicksilver Accesories Guide 2019

ELECTRICAL

BATTERY ISOLATOR HARNESS KIT VERADO KICKER ELECTRICAL KIT

8M0134611
Battery isolated system that allows you to run your kicker engine and use the
Power Steering system without you primary engine running. This system allows
you to connect to a deep cell battery (not your starter battery) and the system will
provide normal power steering from the wheel. The system will alert you when your
auxiliary battery is below 9.5 volts. This signal means that you must start your
primary engine to change the battery system. This kit will save the starting battery
for primary starting use only.
Verado Power Steering systems with a kicker engine 135‑200 Verado
84-8M0094239
Allows the connection of any battery isolator to Mercury/Mariner outboard. Kit ELECTRICAL ISOLATOR KIT- DUAL OPTI AND 150
includes a 10 gauge red cable (8 ft.[2.44 m] length) that connects from the FOURSTROKE
regulator output terminal to the battery isolator input terminal.
Fits Mercury/Mariner 50‑125 hp. (2000 & prior) with high output (16 amp.)
alternator and V‑6 models (1999 & prior) equipped with 40 amp. alternator or dual
20‑amp alternator systems and fits the F75‑115 hp. (2.1L) FourStroke and the
F150 EFI FourStroke outboard. Connections from battery isolator to the batteries
are not included.
BATTERY ISOLATOR STARTER CABLE

8M0073037
Used to add Power steering option to Dual OptiMax or 150 FourStroke engines
Dual OptiMax or 150 FourStroke Engines
ELECTRICAL ISOLATOR KIT- TRIPLE OPTI AND 150
FOURSTROKE
84-8M0045743
Required in addition to the standard Battery Isolator Harness Kit.
Only required with the F75‑115 FourStroke outboard 1B366823‑2B094995.
CABLE/FUSE ASY - 100 AMP -BATTERY ISOLATOR

ELECTRICAL Used to add Power steering option to Triple OptiMax or 150 FourStroke engines
8M0073038
Triple OptiMax and 150 FourStroke Engines

ELECTRICAL HARDWARE
84-898180K01
Improved heat handling capacity cable used with battery isolators and Verado kits ELECTRICAL HARDWARE KIT
175HP+ KICKER ELECTRICAL KIT

8M0149838
This system allows you to run your kicker engine and use the power steering
system without your primary engine running. This system allows you to connect to
a deep cell battery (not your starter battery) and the system will provide normal
power steering from the wheel. The system will alert you when your auxiliary
battery is below 9.5 volts. This signal means that you must start your primary
engine to change the battery system. This kit will save the starting battery for
primary starting use only. Must select the appropriate isolator to be paired with this 86-813937A 2
system, dependent on engine configuration. Contains a broad selection of the electrical connectors used on Mercury/Mariner/
175hp+ power steering systems with a kicker engine. 200‑350 Verado 2015 (Gen Force and MerCruiser products.
5) and newer and all 175‑300hp 3.4L and 4.6L engines.

620 2019 Quicksilver Precision Parts & Accessories Guide
