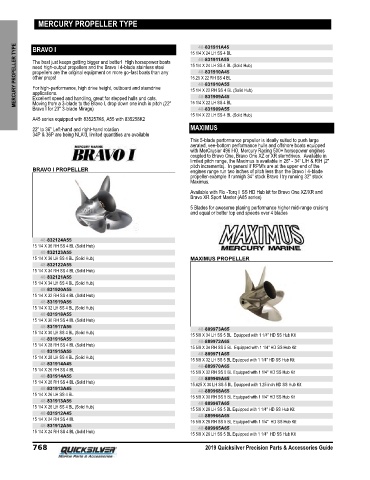

Page 775 - Quicksilver Accesories Guide 2019

MERCURY PROPELLER TYPE 48-831911A45

MERCURY PROPELLER TYPE BRAVO I 15 1/4 X 24 LH SS 4 BL

48-831911A55
The best just keeps getting bigger and better! High horsepower boats
15 1/4 X 24 LH SS 4 BL (Solid Hub)
need high‑output propellers and the Bravo I 4‑blade stainless steel
48-831910A45
propellers are the original equipment on more go‑fast boats than any
other props!
15.25 X 22 RH SS 4 BL
48-831910A55
For high‑performance, high drive height, outboard and sterndrive
15 1/4 X 22 RH SS 4 BL (Solid Hub)
applications.
48-831909A45
Excellent speed and handling, great for stepped hulls and cats.
Moving from a 3‑blade to the Bravo I, drop down one inch in pitch (22''
Bravo I for 23" 3‑blade Mirage) 15 1/4 X 22 LH SS 4 BL
48-831909A55
15 1/4 X 22 LH SS 4 BL (Solid Hub)
A45 series equipped with 835257K6, A55 with 835258K2
22" to 36" Left‑hand and right‑hand rotation MAXIMUS
34P & 36P are being NLA'd, limited quantities are available
This 5‑blade performance propeller is ideally suited to push large
aerated, vee‑bottom performance hulls and offshore boats equipped
with MerCrusier 496 HO, Mercury Racing 500+ horsepower engines
coupled to Bravo One, Bravo One XZ or XR sterndrives. Available in
limited pitch range, the Maximus is available in 26" ‑ 34" L/H & R/H (2"
pitch increments). In general if RPM's are at the upper end of the
BRAVO I PROPELLER engines range run two inches of pitch less than the Bravo I 4‑blade
propeller‑example if runnigh 34" stock Bravo I try running 32" stock
Maximus.
Available with Flo ‑Torq II SS HD Hub kit for Bravo One XZ/XR and
Bravo XR Sport Master (A65 series)
5 Blades for awesome planing performance higher mid‑range cruising
and equal or better top end speeds over 4 blades

48-832124A55
15 1/4 X 36 RH SS 4 BL (Solid Hub)
48-832123A55
15 1/4 X 36 LH SS 4 BL (Solid Hub) MAXIMUS PROPELLER
48-832122A55
15 1/4 X 34 RH SS 4 BL (Solid Hub)
48-832121A55
15 1/4 X 34 LH SS 4 BL (Solid Hub)
48-831920A55
15 1/4 X 32 RH SS 4 BL (Solid Hub)
48-831919A55
15 1/4 X 32 LH SS 4 BL (Solid Hub)
48-831918A55
15 1/4 X 30 RH SS 4 BL (Solid Hub)
48-831917A55 48-889973A65
15 1/4 X 30 LH SS 4 BL (Solid Hub) 15 5/8 X 34 LH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-831916A55 48-889972A65
15 1/4 X 28 RH SS 4 BL (Solid Hub) 15 5/8 X 34 RH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-831915A55 48-889971A65
15 1/4 X 28 LH SS 4 BL (Solid Hub) 15 5/8 X 32 LH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-831914A45 48-889970A65
15 1/4 X 26 RH SS 4 BL 15 5/8 X 32 RH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-831914A55 48-889969A65
15 1/4 X 26 RH SS 4 BL (Solid Hub) 15.625 X 30 LH SS 5 BL Equipped with 1.25 inch HD SS Hub Kit
48-831913A45 48-889968A65
15 1/4 X 26 LH SS 4 BL 15 5/8 X 30 RH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-831913A55 48-889967A65
15 1/4 X 26 LH SS 4 BL (Solid Hub) 15 5/8 X 28 LH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-831912A45
48-889966A65
15 1/4 X 24 RH SS 4 BL 15 5/8 X 28 RH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-831912A55 48-889965A65
15 1/4 X 24 RH SS 4 BL (Solid Hub)
15 5/8 X 26 LH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
768 2019 Quicksilver Precision Parts & Accessories Guide
