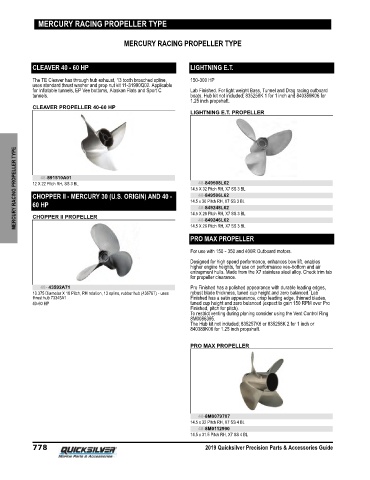

Page 785 - Quicksilver Accesories Guide 2019

MERCURY RACING PROPELLER TYPE

MERCURY RACING PROPELLER TYPE

CLEAVER 40 - 60 HP LIGHTNING E.T.

The TE Cleaver has through hub exhaust, 13 tooth broached spline, 150‑300 HP
uses standard thrust washer and prop nut kit 11‑31990Q02. Applicable
for Inflatable tunnels, EP Vee bottoms, Alaskan Flats and Sport C Lab Finished. For light weight Bass, Tunnel and Drag racing outboard
tunnels. boats. Hub kit not included; 835258K 1 for 1 inch and 840389K06 for
1.25 inch propshaft.
CLEAVER PROPELLER 40-60 HP
LIGHTNING E.T. PROPELLER

MERCURY RACING PROPELLER TYPE 12 X 22 Pitch RH, SS 3 BL 14.5 X 32 Pitch RH, X7 SS 3 BL

48-891510A01
48-849508L62

CHOPPER II - MERCURY 30 (U.S. ORIGIN) AND 40 -
48-849506L62
14.5 x 30 Pitch RH, X7 SS 3 BL
60 HP
48-849248L62
14.5 X 28 Pitch RH, X7 SS 3 BL
CHOPPER II PROPELLER
48-849246L62
14.5 X 26 Pitch RH, X7 SS 3 BL
PRO MAX PROPELLER
For use with 150 ‑ 350 and 400R Outboard motors.
Designed for high speed performance, enhances bow lift, enables
higher engine heights, for use on performance vee‑bottom and air
entrapment hulls. Made from the X7 stainless steel alloy. Check trim tab
for propeller clearance.
48- 43592A71 Pro Finished has a polished appearance with durable leading edges,
10.375 Diameter X 18 Pitch, RH rotation, 13 spline, rubber hub (43676T) ‑ uses robust blade thickness, tuned cup height and zero balanced. Lab
thrust hub 73345A1 Finished has a satin appearance, crisp leading edge, thinned blades,
40‑60 HP tuned cup height and zero balanced (expect to gain 150 RPM over Pro
Finished, pitch for pitch).
To restrict venting during planing consider using the Vent Control Ring
8M0086395.
The Hub kit not included; 835257K6 or 835258K 2 for 1 inch or
840389K06 for 1.25 inch propshaft.

PRO MAX PROPELLER

48-8M0079707
14.5 x 32 Pitch RH, X7 SS 4 BL
48-8M0112990
14.5 x 31.5 Pitch RH, X7 SS 4 BL
778 2019 Quicksilver Precision Parts & Accessories Guide
