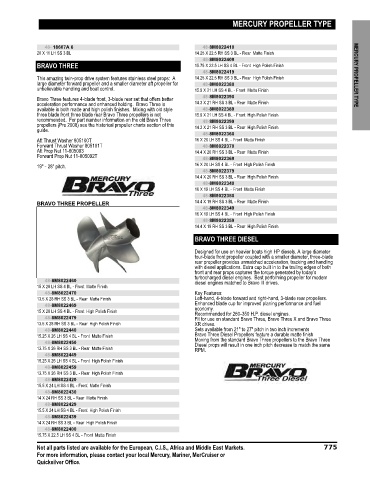

Page 782 - Quicksilver Accesories Guide 2019

MERCURY PROPELLER TYPE

48- 18607A 6 48-8M8022410
20 X 11 LH SS 3 BL 14.25 X 22.5 RH SS 3 BL ‑ Rear Matte Finish
48-8M8022409
BRAVO THREE 15.75 X 22.5 LH SS 4 BL ‑ Front High Polish Finish
48-8M8022419
This amazing twin‑prop drive system features stainless steel props: A 14.25 X 22.5 RH SS 3 BL ‑ Rear High Polish Finish MERCURY PROPELLER TYPE
large diameter forward propeller and a smaller diameter aft propeller for 48-8M8022380
unbelievable handling and boat control. 15.9 X 21 LH SS 4 BL ‑ Front Matte Finish
Bravo Three features 4‑blade front, 3‑blade rear set that offers better 48-8M8022390
acceleration performance and enhanced holding. Bravo Three is 14.3 X 21 RH SS 3 BL ‑ Rear Matte Finish
available in both matte and high polish finishes. Mixing with old style 48-8M8022389
three blade front three blade rear Bravo Three propellers is not 15.9 X 21 LH SS 4 BL ‑ Front High Polish Finish
recommended. For part number information on the old Bravo Three 48-8M8022399
propellers (Pre 2008) see the historical propeller charts section of this
guide. 14.3 X 21 RH SS 3 BL ‑ Rear High Polish Finish
48-8M8022360
Aft Thrust Washer 805100T 16 X 20 LH SS 4 BL ‑ Front Matte Finish
Forward Thrust Washer 805101T 48-8M8022370
Aft Prop Nut 11‑805093 14.4 X 20 RH SS 3 BL ‑ Rear Matte Finish
Forward Prop Nut 11‑805092T 48-8M8022369
19" ‑ 28" pitch. 16 X 20 LH SS 4 BL ‑ Front High Polish Finish
48-8M8022379
14.4 X 20 RH SS 3 BL ‑ Rear High Polish Finish
48-8M8022340
16 X 19 LH SS 4 BL ‑ Front Matte Finish
48-8M8022350
BRAVO THREE PROPELLER 14.4 X 19 RH SS 3 BL ‑ Rear Matte Finish
48-8M8022349
16 X 19 LH SS 4 BL ‑ Front High Polish Finish
48-8M8022359
14.4 X 19 RH SS 3 BL ‑ Rear High Polish Finish
BRAVO THREE DIESEL

Designed for use on heavier boats high HP diesels. A large diameter
four‑blade front propeller coupled with a smaller diameter, three‑blade
rear propeller provides unmatched acceleration, tracking and handling
with diesel applications. Extra cup built in to the trailing edges of both
front and rear props captures the torque generated by today’s
turbocharged diesel engines. Best performing propeller for modern
48-8M8022460 diesel engines matched to Bravo III drives.
15 X 28 LH SS 4 BL ‑ Front Matte Finish
48-8M8022470 Key Features:
13.5 X 28 RH SS 3 BL ‑ Rear Matte Finish Left‑hand, 4‑blade forward and right‑hand, 3‑blade rear propellers.
48-8M8022469 Enhanced blade cup for improved planing performance and fuel
15 X 28 LH SS 4 BL ‑ Front High Polish Finish economy.
Recommended for 260‑350 H.P. diesel engines.
48-8M8022479 Fit for use on standard Bravo Three, Bravo Three X and Bravo Three
13.5 X 28 RH SS 3 BL ‑ Rear High Polish Finish XR drives.
48-8M8022440 Sets available from 21" to 27" pitch in two inch increments
15.25 X 26 LH SS 4 BL ‑ Front Matte Finish Bravo Three Diesel Propellers feature a durable matte finish
Moving from the standard Bravo Three propellers to the Bravo Three
48-8M8022450 Diesel props will result in one inch pitch decrease to match the same
13.75 X 26 RH SS 3 BL ‑ Rear Matte Finish RPM.
48-8M8022449
15.25 X 26 LH SS 4 BL ‑ Front High Polish Finish
48-8M8022459
13.75 X 26 RH SS 3 BL ‑ Rear High Polish Finish
48-8M8022420
15.5 X 24 LH SS 4 BL ‑ Front Matte Finish
48-8M8022430
14 X 24 RH SS 3 BL ‑ Rear Matte Finish
48-8M8022429
15.5 X 24 LH SS 4 BL ‑ Front High Polish Finish
48-8M8022439
14 X 24 RH SS 3 BL ‑ Rear High Polish Finish
48-8M8022400
15.75 X 22.5 LH SS 4 BL ‑ Front Matte Finish

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 775
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
