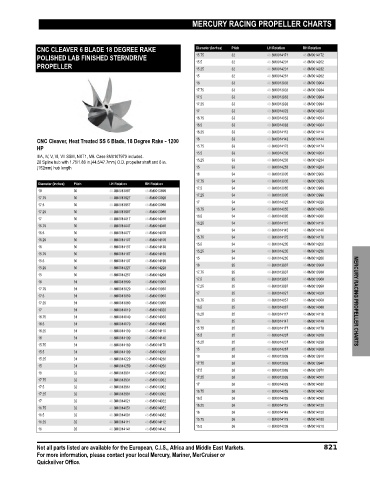

Page 828 - Quicksilver Accesories Guide 2019

MERCURY RACING PROPELLER CHARTS

CNC CLEAVER 6 BLADE 18 DEGREE RAKE Diameter (Inches) Pitch LH Rotation RH Rotation
POLISHED LAB FINISHED STERNDRIVE 15.75 32 48-8M0014171 48-8M0014172
32
15.5
48-8M0014202
48-8M0014201
PROPELLER 15.25 32 48-8M0014231 48-8M0014232
15 32 48-8M0014261 48-8M0014262
18 33 48-8M0013903 48-8M0013904
17.75 33 48-8M0013933 48-8M0013934
17.5 33 48-8M0013963 48-8M0013964
17.25 33 48-8M0013993 48-8M0013994
17 33 48-8M0014023 48-8M0014024
16.75 33 48-8M0014053 48-8M0014054
16.5 33 48-8M0014083 48-8M0014084
16.25 33 48-8M0014113 48-8M0014114
CNC Cleaver, Heat Treated SS 6 Blade, 18 Degree Rake ‑ 1200 16 33 48-8M0014143 48-8M0014144
HP 15.75 33 48-8M0014173 48-8M0014174
15.5 33 48-8M0014203 48-8M0014204
IIIA, IV, V, VI, VII SSM, NXT1, M8. Case 8M0107970 included.
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in. 15.25 33 48-8M0014233 48-8M0014234
(152mm) hub length 15 33 48-8M0014263 48-8M0014264
18 34 48-8M0013905 48-8M0013906
17.75 34 48-8M0013935 48-8M0013936
Diameter (Inches) Pitch LH Rotation RH Rotation
17.5 34 48-8M0013965 48-8M0013966
18 30 48-8M0013897 48-8M0013898
17.25 34 48-8M0013995 48-8M0013996
17.75 30 48-8M0013927 48-8M0013928
17 34 48-8M0014025 48-8M0014026
17.5 30 48-8M0013957 48-8M0013958
16.75 34 48-8M0014055 48-8M0014056
17.25 30 48-8M0013987 48-8M0013988
16.5 34 48-8M0014085 48-8M0014086
17 30 48-8M0014017 48-8M0014018
16.25 34 48-8M0014115 48-8M0014116
16.75 30 48-8M0014047 48-8M0014048
16 34 48-8M0014145 48-8M0014146
16.5 30 48-8M0014077 48-8M0014078
15.75 34 48-8M0014175 48-8M0014176
16.25 30 48-8M0014107 48-8M0014108
15.5 34 48-8M0014205 48-8M0014206
16 30 48-8M0014137 48-8M0014138
15.25 34 48-8M0014235 48-8M0014236
15.75 30 48-8M0014167 48-8M0014168
15 34 48-8M0014265 48-8M0014266
15.5 30 48-8M0014197 48-8M0014198
18 35 48-8M0013907 48-8M0013908
15.25 30 48-8M0014227 48-8M0014228
17.75 35 48-8M0013937 48-8M0013938
15 30 48-8M0014257 48-8M0014258
17.5 35 48-8M0013967 48-8M0013968
18 31 48-8M0013899 48-8M0013900
17.25 35 48-8M0013997 48-8M0013998
17.75 31 48-8M0013929 48-8M0013930
17 35 48-8M0014027 48-8M0014028
17.5 31 48-8M0013959 48-8M0013960
16.75 35 48-8M0014057 48-8M0014058
17.25 31 48-8M0013989 48-8M0013990 MERCURY RACING PROPELLER CHARTS
16.5 35 48-8M0014087 48-8M0014088
17 31 48-8M0014019 48-8M0014020
16.25 35 48-8M0014117 48-8M0014118
16.75 31 48-8M0014049 48-8M0014050
16 35 48-8M0014147 48-8M0014148
16.5 31 48-8M0014079 48-8M0014080
15.75 35 48-8M0014177 48-8M0014178
16.25 31 48-8M0014109 48-8M0014110
15.5 35 48-8M0014207 48-8M0014208
16 31 48-8M0014139 48-8M0014140
15.25 35 48-8M0014237 48-8M0014238
15.75 31 48-8M0014169 48-8M0014170
15 35 48-8M0014267 48-8M0014268
15.5 31 48-8M0014199 48-8M0014200
18 36 48-8M0013909 48-8M0013910
15.25 31 48-8M0014229 48-8M0014230
17.75 36 48-8M0013939 48-8M0013940
15 31 48-8M0014259 48-8M0014260
17.5 36 48-8M0013969 48-8M0013970
18 32 48-8M0013901 48-8M0013902
17.25 36 48-8M0013999 48-8M0014000
17.75 32 48-8M0013931 48-8M0013932
17 36 48-8M0014029 48-8M0014030
17.5 32 48-8M0013961 48-8M0013962
16.75 36 48-8M0014059 48-8M0014060
17.25 32 48-8M0013991 48-8M0013992
16.5 36 48-8M0014089 48-8M0014090
17 32 48-8M0014021 48-8M0014022
16.25 36 48-8M0014119 48-8M0014120
16.75 32 48-8M0014051 48-8M0014052
16 36 48-8M0014149 48-8M0014150
16.5 32 48-8M0014081 48-8M0014082
15.75 36 48-8M0014179 48-8M0014180
16.25 32 48-8M0014111 48-8M0014112
15.5 36 48-8M0014209 48-8M0014210
16 32 48-8M0014141 48-8M0014142
Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 821
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
