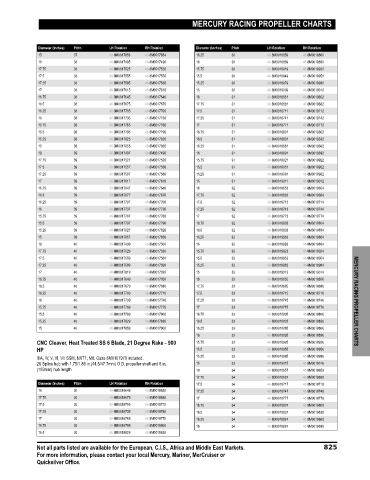

Page 832 - Quicksilver Accesories Guide 2019

MERCURY RACING PROPELLER CHARTS

Diameter (Inches) Pitch LH Rotation RH Rotation Diameter (Inches) Pitch LH Rotation RH Rotation
15 37 48-8M0017853 48-8M0017854 16.25 30 48-8M0018859 48-8M0018860
18 38 48-8M0017495 48-8M0017496 16 30 48-8M0018889 48-8M0018890
17.75 38 48-8M0017525 48-8M0017526 15.75 30 48-8M0018919 48-8M0018920
17.5 38 48-8M0017555 48-8M0017556 15.5 30 48-8M0018949 48-8M0018950
17.25 38 48-8M0017585 48-8M0017586 15.25 30 48-8M0018979 48-8M0018980
17 38 48-8M0017615 48-8M0017616 15 30 48-8M0019009 48-8M0019010
16.75 38 48-8M0017645 48-8M0017646 18 31 48-8M0018651 48-8M0018652
16.5 38 48-8M0017675 48-8M0017676 17.75 31 48-8M0018681 48-8M0018682
16.25 38 48-8M0017705 48-8M0017706 17.5 31 48-8M0018711 48-8M0018712
16 38 48-8M0017735 48-8M0017736 17.25 31 48-8M0018741 48-8M0018742
15.75 38 48-8M0017765 48-8M0017766 17 31 48-8M0018771 48-8M0018772
15.5 38 48-8M0017795 48-8M0017796 16.75 31 48-8M0018801 48-8M0018802
15.25 38 48-8M0017825 48-8M0017826 16.5 31 48-8M0018831 48-8M0018832
15 38 48-8M0017855 48-8M0017856 16.25 31 48-8M0018861 48-8M0018862
18 39 48-8M0017497 48-8M0017498 16 31 48-8M0018891 48-8M0018892
17.75 39 48-8M0017527 48-8M0017528 15.75 31 48-8M0018921 48-8M0018922
17.5 39 48-8M0017557 48-8M0017558 15.5 31 48-8M0018951 48-8M0018952
17.25 39 48-8M0017587 48-8M0017588 15.25 31 48-8M0018981 48-8M0018982
17 39 48-8M0017617 48-8M0017618 15 31 48-8M0019011 48-8M0019012
16.75 39 48-8M0017647 48-8M0017648 18 32 48-8M0018653 48-8M0018654
16.5 39 48-8M0017677 48-8M0017678 17.75 32 48-8M0018683 48-8M0018684
16.25 39 48-8M0017707 48-8M0017708 17.5 32 48-8M0018713 48-8M0018714
16 39 48-8M0017737 48-8M0017738 17.25 32 48-8M0018743 48-8M0018744
15.75 39 48-8M0017767 48-8M0017768 17 32 48-8M0018773 48-8M0018774
15.5 39 48-8M0017797 48-8M0017798 16.75 32 48-8M0018803 48-8M0018804
15.25 39 48-8M0017827 48-8M0017828 16.5 32 48-8M0018833 48-8M0018834
15 39 48-8M0017857 48-8M0017858 16.25 32 48-8M0018863 48-8M0018864
18 40 48-8M0017499 48-8M0017500 16 32 48-8M0018893 48-8M0018894
17.75 40 48-8M0017529 48-8M0017530 15.75 32 48-8M0018923 48-8M0018924
17.5 40 48-8M0017559 48-8M0017560 15.5 32 48-8M0018953 48-8M0018954
17.25 40 48-8M0017589 48-8M0017590 15.25 32 48-8M0018983 48-8M0018984
17 40 48-8M0017619 48-8M0017620 15 32 48-8M0019013 48-8M0019014
16.75 40 48-8M0017649 48-8M0017650 18 33 48-8M0018655 48-8M0018656
16.5 40 48-8M0017679 48-8M0017680 17.75 33 48-8M0018685 48-8M0018686
16.25 40 48-8M0017709 48-8M0017710 17.5 33 48-8M0018715 48-8M0018716
16 40 48-8M0017739 48-8M0017740 17.25 33 48-8M0018745 48-8M0018746 MERCURY RACING PROPELLER CHARTS
15.75 40 48-8M0017769 48-8M0017770 17 33 48-8M0018775 48-8M0018776
15.5 40 48-8M0017799 48-8M0017800 16.75 33 48-8M0018805 48-8M0018806
15.25 40 48-8M0017829 48-8M0017830 16.5 33 48-8M0018835 48-8M0018836
15 40 48-8M0017859 48-8M0017860 16.25 33 48-8M0018865 48-8M0018866
16 33 48-8M0018895 48-8M0018896
CNC Cleaver, Heat Treated SS 6 Blade, 21 Degree Rake ‑ 900 15.75 33 48-8M0018925 48-8M0018926
HP 15.5 33 48-8M0018955 48-8M0018956
IIIA, IV, V, VI, VII SSM, NXT1, M8. Case 8M0107970 included. 15.25 33 48-8M0018985 48-8M0018986
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in. 15 33 48-8M0019015 48-8M0019016
(152mm) hub length 18 34 48-8M0018657 48-8M0018658
17.75 34 48-8M0018687 48-8M0018688
Diameter (Inches) Pitch LH Rotation RH Rotation 17.5 34 48-8M0018717 48-8M0018718
18 30 48-8M0018649 48-8M0018650 17.25 34 48-8M0018747 48-8M0018748
17.75 30 48-8M0018679 48-8M0018680 17 34 48-8M0018777 48-8M0018778
17.5 30 48-8M0018709 48-8M0018710 16.75 34 48-8M0018807 48-8M0018808
17.25 30 48-8M0018739 48-8M0018740 16.5 34 48-8M0018837 48-8M0018838
17 30 48-8M0018769 48-8M0018770 16.25 34 48-8M0018867 48-8M0018868
16.75 30 48-8M0018799 48-8M0018800 16 34 48-8M0018897 48-8M0018898
16.5 30 48-8M0018829 48-8M0018830

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 825
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
