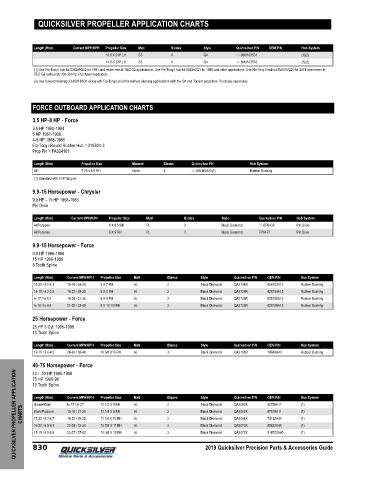

Page 837 - Quicksilver Accesories Guide 2019

QUICKSILVER PROPELLER APPLICATION CHARTS

Length (ft/m) Current MPH/KPH Propeller Size Matl Blades Style Quicksilver P/N OEM P/N Hub System
14.6 X 21P LH SS 4 Q4 48-8M0103531 (1)(2)
14.6 X 23P LH SS 4 Q4 48-8M0103533 (1)(2)
(1) Use Flo-Torq II hub kit 835265Q02 for 1991 and newer non E-TEC G2 applications. Use Flo-Torq II hub kit 835267Q1 for 1990 and older applications. Use Flo-Torq II hub kit 8M0107220 for 2014 and newer E-
TEC G2 outboards 200-300 hp. Purchase separately.
(2) Use forward bushing 23-856163Q1 along with Flo-Torq hub kit for surface piercing applications with the Q4 and Torrent propellers. Purchase separately.

FORCE OUTBOARD APPLICATION CHARTS

3.5 HP‑8 HP ‑ Force
3.5 HP 1980‑1984
5 HP 1987‑1998
4‑8 HP 1968‑1988
Flo‑Torq I Round Rubber Hub = 318304‑3
Prop Pin = FA324101
Length (ft/m) Propeller Size Material Blades Quicksilver PN Hub System
All 7.25 x 6.5 RH Nylon 3 48-820110A20(1) Rubber Bushing
(1) Standard with 5 HP Engine

9.9‑15 Horsepower ‑ Chrysler
9.9 HP ‑ 15 HP 1968‑1983
Pin Drive
Length (ft/m) Current MPH/KPH Propeller Size Matl Blades Style Quicksilver P/N Hub System
All Purpose 8 X 8.5 RH PL 3 Black Diamond 48-FP6430 Pin Drive
All Purpose 8 X 9 RH PL 3 Black Diamond FP6477 Pin Drive

9.9‑15 Horsepower ‑ Force
9.9 HP 1996‑1998
15 HP 1996‑1998
8 Tooth Spline

Length (ft/m) Current MPH/KPH Propeller Size Matl Blades Style Quicksilver P/N OEM P/N Hub System
15-20 / 4.5-6.1 15-18 / 24-29 9 X 7 RH AL 3 Black Diamond QA2124R 828152A12 Rubber Bushing
14-19 / 4.2-2.8 16-22 / 25-35 9 X 8 RH AL 3 Black Diamond QA2126R 828154A12 Rubber Bushing
to 17 / to 5.2 19-24 / 31-38 9 X 9 RH AL 3 Black Diamond QA2128R 828156A12 Rubber Bushing
to 16 / to 4.8 21-28 / 33-45 9 X 10 1/2 RH AL 3 Black Diamond QA2130R 828158A12 Rubber Bushing

25 Horsepower ‑ Force
25 HP 3 Cyl. 1995‑1998
10 Tooth Spline

Length (ft/m) Current MPH/KPH Propeller Size Matl Blades Style Quicksilver P/N OEM P/N Hub System
12-15 / 3.6-4.5 24-30 / 38-48 10 3/8 X13 RH AL 3 Black Diamond QA2106R 19640A40 Rubber Bushing

40‑75 Horsepower ‑ Force
QUICKSILVER PROPELLER APPLICATION CHARTS 830 Current MPH/KPH Propeller Size Matl Blades Style 2019 Quicksilver Precision Parts & Accessories Guide
40 ‑ 50 HP 1995‑1998
75 HP 1996‑98
13 Tooth Spline

Quicksilver P/N
Hub System
Length (ft/m)
OEM P/N
3
12 1/2 X 8 RH
AL
(1)
QA2060X
42738A11
Black Diamond
to 17 / to 27
House/Work
12 1/4 X 9 RH
13-18 / 21-29
3
Black Diamond
87818A11
Work/Pontoon
QA2062X
(1)
AL
Black Diamond
11 1/4 X 10 RH
QA2064X
(1)
17-22 / 5.2-6.7
18-22 / 29-35
3
AL
73132A40
85632A40
(1)
10 7/8 X 11 RH
QA2070X
20-24 / 32-38
3
AL
Black Diamond
16-20 / 4.8-6.1
816702A40
(1)
10 3/4 X 12 RH
23-27 / 37-43
15-19 / 4.5-5.8
AL
QA2072X
Black Diamond
3
