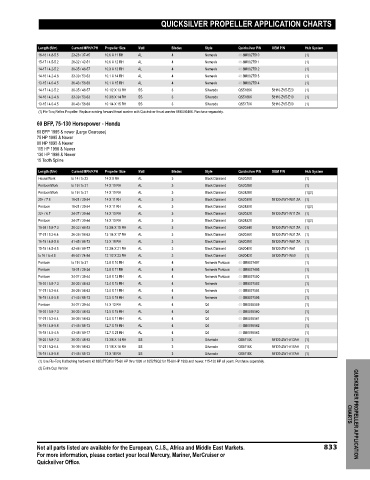

QUICKSILVER PROPELLER APPLICATION CHARTS

Length (ft/m) Current MPH/KPH Propeller Size Matl Blades Style Quicksilver P/N OEM P/N Hub System
16-18 / 4.8-5.5 23-28 / 37-45 10.6 X 11 RH AL 4 Nemesis 48-8M8027510 (1)
15-17 / 4.5-5.2 26-32 / 42-51 10.6 X 12 RH AL 4 Nemesis 48-8M8027511 (1)
14-17 / 4.2-5.2 30-35 / 48-57 10.3 X 13 RH AL 4 Nemesis 48-8M8027512 (1)
14-16 / 4.2-4.8 33-39 / 53-63 10.1 X 14 RH AL 4 Nemesis 48-8M8027513 (1)
13-15 / 4.0-4.5 36-43 / 58-69 10.1 X 15 RH AL 4 Nemesis 48-8M8027514 (1)
14-17 / 4.2-5.2 30-35 / 48-57 10 1/2 X 13 RH SS 3 Silverado QS5166X 58110-ZV5-E20 (1)
14-16 / 4.2-4.8 33-39 / 53-63 10 3/8 X 14 RH SS 3 Silverado QS5168X 58110-ZV5-E10 (1)
13-15 / 4.0-4.5 36-43 / 58-69 10 1/4 X 15 RH SS 3 Silverado QS5170X 58110-ZV5-E00 (1)
(1) Flo-Torq Reflex Propeller. Replace existing forward thrust washer with Quicksilver thrust washer 8M0046466. Purchase separately.
60 BFP, 75‑130 Horsepower ‑ Honda
60 BFP 1995 & newer (Large Gearcase)
75 HP 1995 & Newer
90 HP 1995 & Newer
115 HP 1998 & Newer
130 HP 1998 & Newer
15 Tooth Spline

Length (ft/m) Current MPH/KPH Propeller Size Matl Blades Style Quicksilver P/N OEM P/N Hub System
House/Work to 14 / to 23 14 X 9 RH AL 3 Black Diamond QA2026X (1)
Pontoon/Work to 19 / to 31 14 X 10 RH AL 3 Black Diamond QA2028X (1)
Pontoon/Work to 19 / to 31 14 X 10 RH AL 3 Black Diamond QA2828X (1)(2)
25+ / 7.8 18-21 / 29-34 14 X 11 RH AL 3 Black Diamond QA2030X 58130-ZW1-W01 ZA (1)
Pontoon 18-21 / 29-34 14 X 11 RH AL 3 Black Diamond QA2830X (1)(2)
22+ / 6.7 24-27 / 39-44 14 X 13 RH AL 3 Black Diamond QA2032X 58130-ZW1-W11 ZA (1)
Pontoon 24-27 / 39-44 14 X 13 RH AL 3 Black Diamond QA2832X (1)(2)
19-24 / 5.8-7.3 30-33 / 48-53 13 3/4 X 15 RH AL 3 Black Diamond QA2034X 58130-ZW1-W21 ZA (1)
17-21 / 5.2-6.4 36-39 / 58-63 13 1/4 X 17 RH AL 3 Black Diamond QA2036X 58130-ZW1-W31 ZA (1)
16-19 / 4.8-5.8 41-45 / 66-73 13 X 19 RH AL 3 Black Diamond QA2038X 58130-ZW1-W61 ZA (1)
15-18 / 4.5-4.5 43-48 / 69-77 12 3/4 X 21 RH AL 3 Black Diamond QA2040X 58130-ZW1-W41 (1)
to 16 / to 4.8 46-52 / 74-84 12 1/2 X 23 RH AL 3 Black Diamond QA2042X 58130-ZW1-W50 (1)
Pontoon to 19 / to 31 13.8 X 10 RH AL 4 Nemesis Pontoon 48-8M8027497 (1)
Pontoon 18-21 / 29-34 13.8 X 11 RH AL 4 Nemesis Pontoon 48-8M8027498 (1)
Pontoon 24-27 / 39-44 13.8 X 13 RH AL 4 Nemesis Pontoon 48-8M8027500 (1)
19-24 / 5.8-7.3 30-33 / 48-53 13.4 X 15 RH AL 4 Nemesis 48-8M8027502 (1)
17-21 / 5.2-6.4 36-39 / 58-63 13.0 X 17 RH AL 4 Nemesis 48-8M8027504 (1)
16-19 / 4.8-5.8 41-45 / 66-73 12.5 X 19 RH AL 4 Nemesis 48-8M8027506 (1)
Pontoon 24-27 / 39-44 14 X 13 RH AL 4 Q4 48-8M0055559 (1)
19-24 / 5.8-7.3 30-33 / 48-53 13.5 X 15 RH AL 4 Q4 48-8M0055560 (1)
17-21 / 5.2-6.4 36-39 / 58-63 13.0 X 17 RH AL 4 Q4 48-8M0055561 (1)
16-19 / 4.8-5.8 41-45 / 66-73 12.7 X 19 RH AL 4 Q4 48-8M0055562 (1)
15-18 / 4.5-4.5 43-48 / 69-77 12.7 X 21 RH AL 4 Q4 48-8M0055563 (1)
19-24 / 5.8-7.3 30-33 / 48-53 13 3/8 X 14 RH SS 3 Silverado QS5114X 58133-ZW1-A13AH (1)
17-21 / 5.2-6.4 36-39 / 58-63 13 1/8 X 16 RH SS 3 Silverado QS5116X 58133-ZW1-A15AH (1)
16-19 / 4.8-5.8 41-45 / 66-73 13 X 18 RH SS 3 Silverado QS5118X 58133-ZW1-A17AH (1)
(1) Use Flo-Torq II attaching hardware kit 835277Q1for 75-90 HP thru 1998 or 835279Q2 for 75-90 HP 1999 and newer, 115-130 HP all years. Purchase separately.
(2) Extra Cup Version

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 833 CHARTS QUICKSILVER PROPELLER APPLICATION
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
