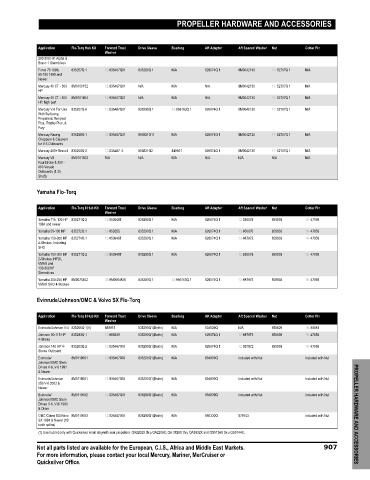

Page 914 - Quicksilver Accesories Guide 2019

PROPELLER HARDWARE AND ACCESSORIES

Application Flo-Torq Hub Kit Forward Trust Drive Sleeve Bushing Aft Adaptor Aft Spacer/ Washer Nut Cotter Pin
Washer
200-300 HP, Alpha &
Bravo 1 Sterndrives
Force 75 1999, 835257Q 1 12-835467Q01 835290Q 1 N/A 826074Q 1 8M0042130 11- 52707Q 1 N/A
90-150 1995 and
Newer
Mercury 40 CT - 300 8M0150152 12-835467Q01 N/A N/A N/A 8M0042130 11- 52707Q 1 N/A
HP
Mercury 40 CT - 300 8M0101604 12-835467Q01 N/A N/A N/A 8M0042130 11- 52707Q 1 N/A
HP, high perf
Mercury V-6 For Use 835257Q 6 12-835467Q01 835290Q 1 23-856163Q 1 826074Q 1 8M0042130 11- 52707Q 1 N/A
With Surfacing
Propellers; Tempest
Plus, Trophy Plus, &
Fury
Mercury Racing 835258Q 1 12-835467Q01 850821Q11 N/A 826074Q 1 8M0042130 11- 52707Q 1 N/A
Choppers & Cleavers
for V-6 Outboards
Mercury 400+ Bravo I 835258Q 2 12-835467 5 850821Q2 849501 826074Q 1 8M0042130 11- 52707Q 1 N/A
Mercury V8 8M0101603 N/A N/A N/A N/A N/A N/A N/A
FourStroke & 350 -
400 Verado
Outboards (1.25
Shaft)

Yamaha Flo‑Torq

Application Flo-Torq II Hub Kit Forward Trust Drive Sleeve Bushing Aft Adaptor Aft Spacer/ Washer Nut Cotter Pin
Washer
Yamaha 115, 130 HP 835271Q 2 12-853948T 835290Q 1 N/A 826074Q 1 12-850076 859939 18- 47959
1984 and newer
Yamaha 50-100 HP 835272Q 1 12-853555 835290Q 1 N/A 826074Q 1 12-850076 859939 18- 47959
Yamaha 150-300 HP 835274Q 1 12-853948T 835290Q 1 N/A 826074Q 1 12-887972 859939 18- 47959
4-Strokes, Including
SHO
Yamaha 150-300 HP 835271Q 2 12-853948T 835290Q 1 N/A 826074Q 1 12-850076 859939 18- 47959
2-Strokes, HPDI,
VMAX and
130-300HP
Sterndrives
Yamaha 200-250 HP 8M0075402 23-8M0064826 835290Q 1 23-856163Q 1 826074Q 1 12-887972 859939 18- 47959
VMAX SHO 4-Strokes

Evinrude/Johnson/OMC & Volvo SX Flo‑Torq

Application Flo-Torq II Hub Kit Forward Trust Drive Sleeve Bushing Aft Adaptor Aft Spacer/ Washer Nut Cotter Pin
Washer
Evinrude/Johnson V-4 835266Q 1(1) 859915 835290Q1(Delrin) N/A 834839Q N/A 859929 18- 89961
Johnson 90-115 HP 835283Q 1 12-888939 835290Q1(Delrin) N/A 826074Q 1 12-887972 859939 18- 47959
4-Stroke
Johnson 140 HP 4- 835283Q 2 12-835467008 835290Q1(Delrin) N/A 826074Q 1 12-887972 859939 18- 47959
Stroke Outboard
Evinrude/ 8M0119081 12-835467008 835290Q1(Delrin) N/A 834839Q Included with Nut Included with Nut
Johnson/OMC Stern
Drives V-6, V-8 1991
& Newer
Evinrude/Johnson 8M0119081 12-835467008 835290Q1(Delrin) N/A 834839Q Included with Nut Included with Nut
250 V-6 2002 &
Newer
Evinrude/ 8M0119082 12-835467Q01 835290Q1(Delrin) N/A 834839Q Included with Nut Included with Nut
Johnson/OMC Stern
Drives V-6, V-8/ 1990
& Older
OMC Cobra SX/Volvo 8M0119083 12-835467008 835290Q1(Delrin) N/A 850330Q 879143 Included with Nut PROPELLER HARDWARE AND ACCESSORIES
SX 1994 & Newer (19
tooth spline)
(1) Use hub kit only with Quicksilver small labyrinth seal propellers: QA2202X thru QA2208X, QA 3828X thru QA3832X and QS5136X thru QS5144X.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 907
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
