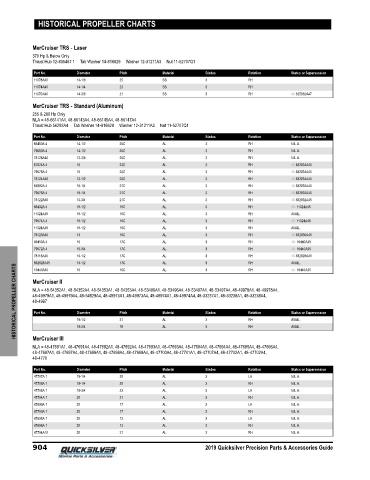

HISTORICAL PROPELLER CHARTS

MerCruiser TRS ‑ Laser
370 Hp & Below Only
Thrust Hub 12‑835467 1 Tab Washer 14‑816629 Washer 12‑31211A3 Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
11078A40 14-1/8 25 SS 3 RH
11074A40 14-1/4 23 SS 3 RH
11070A40 14-3/8 21 SS 3 RH 48-825862A47
MerCruiser TRS ‑ Standard (Aluminum)
255 & 280 Hp Only
NLA = 48‑66141A4, 48‑66143A4, 48‑66145A4, 48‑66147A4
Thrust Hub 56292A4 Tab Washer 14‑816629 Washer 12‑31211A3 Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
65480A 4 14-1/2 25C AL 3 RH N.L.A.
79580A 4 14-1/2 25C AL 3 RH N.L.A.
78126A40 13-3/8 25C AL 3 RH N.L.A.
67874A 4 15 23C AL 3 RH 48-832834A45
79578A 4 15 23C AL 3 RH 48-832834A45
78124A40 13-1/2 23C AL 3 RH 48-832834A45
65992A 4 15-1/4 21C AL 3 RH 48-832832A45
79576A 4 15-1/4 21C AL 3 RH 48-832832A45
78122A40 13-3/4 21C AL 3 RH 48-832832A45
66432A 4 15-1/2 19C AL 3 RH 48- 11324A45
11324A45 15-1/2 19C AL 3 RH AVAIL.
79574A 4 15-1/2 19C AL 3 RH 48- 11324A45
11324A45 15-1/2 19C AL 3 RH AVAIL.
78120A40 14 19C AL 3 RH 48-832830A45
66450A 4 16 17C AL 3 RH 48- 16440A45
79572A 4 15-3/4 17C AL 3 RH 48- 16440A45
78118A40 14-1/2 17C AL 3 RH 48-832828A45
832828A45 14-1/2 17C AL 3 3 RH AVAIL.
HISTORICAL PROPELLER CHARTS NLA = 48‑54352A1, 48‑54352A4, 48‑54353A1, 48‑54353A4, 48‑53496A1, 48‑53496A4, 48‑53497A1, 48‑53497A4, 48‑49978A1, 48‑49978A4, Status or Supersession
16C
16440A40
AL
48- 16440A45
RH
16
MerCruiser II
48‑49979A1, 48‑49979A4, 48‑54829A4, 48‑49973A1, 48‑49973A4, 48‑49974A1, 48‑49974A4, 48‑33237A1, 48‑33238A1, 48‑33238A4,
48‑4997
Diameter
Pitch
Part No.
Blades
Rotation
Material
3
21
19-1/2
AL
AVAIL.
RH

AL
19

19-3/4
3
RH
MerCruiser III
NLA = 48‑47691A1, 48‑47691A4, 48‑47692A1, 48‑47692A4, 48‑47693A1, 48‑47693A4, 48‑47694A1, 48‑47694A4, 48‑47695A4, 48‑47696A4, AVAIL.
48‑47697A1, 48‑47697A4, 48‑47698A1, 48‑47698A4, 48‑47699A4, 48‑47700A4, 48‑47701A1, 48‑47707A4, 48‑47702A1, 48‑47702A4,
48‑4770
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
47707A 1 19-1/4 25 AL 3 LH N.L.A.
47708A 1 19-1/4 25 AL 3 RH N.L.A.
47705A 1 19-3/4 23 AL 3 LH N.L.A.
47704A 1 20 21 AL 3 RH N.L.A.
47699A 1 20 17 AL 3 LH N.L.A.
47700A 1 20 17 AL 3 RH N.L.A.
47695A 1 20 13 AL 3 LH N.L.A.
47696A 1 20 13 AL 3 RH N.L.A.
47704A10 20 21 AL 3 RH N.L.A.
