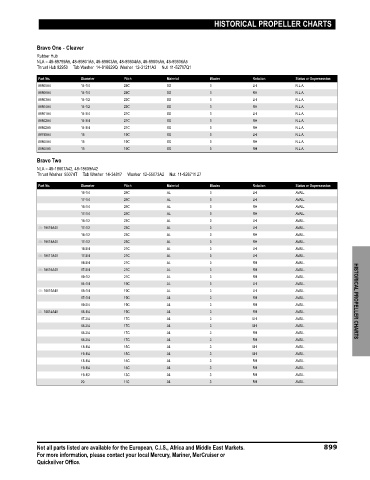

Page 906 - Quicksilver Accesories Guide 2019

HISTORICAL PROPELLER CHARTS

Bravo One ‑ Cleaver
Rubber Hub
NLA = 48‑89799A5, 48‑89801A5, 48‑89803A5, 48‑89804A5, 48‑89805A5, 48‑89806A5
Thrust Hub 92950 Tab Washer 14‑816629Q Washer 12‑31211A3 Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
89805A4 14-1/4 25C SS 3 LH N.L.A.
89806A4 14-1/4 25C SS 3 RH N.L.A.
89803A4 14-1/2 23C SS 3 LH N.L.A.
89804A4 14-1/2 23C SS 3 RH N.L.A.
89801A4 14-3/4 21C SS 3 LH N.L.A.
89802A4 14-3/4 21C SS 3 RH N.L.A.
89802A5 14-3/4 21C SS 3 RH N.L.A.
89799A4 15 19C SS 3 LH N.L.A.
89800A4 15 19C SS 3 RH N.L.A.
89800A5 15 19C SS 3 RH N.L.A.
Bravo Two
NLA = 48‑18607A42, 48‑18609A42
Thrust Washer 55074T Tab Washer 14‑34817 Washer 12‑55073A2 Nut 11‑826711 27

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
16-1/4 25C AL 3 LH AVAIL.
17-1/4 25C AL 3 LH AVAIL.
16-1/4 25C AL 3 RH AVAIL.
17-1/4 25C AL 3 RH AVAIL.
16-1/2 23C AL 3 LH AVAIL.
48- 18619A40 17-1/2 23C AL 3 LH AVAIL.
16-1/2 23C AL 3 RH AVAIL.
48- 18618A40 17-1/2 23C AL 3 RH AVAIL.
16-3/4 21C AL 3 LH AVAIL.
48- 18617A40 17-3/4 21C AL 3 LH AVAIL.
16-3/4 21C AL 3 RH AVAIL.
48- 18616A40 17-3/4 21C AL 3 RH AVAIL.
19-1/2 21C AL 3 RH AVAIL.
14-1/4 19C AL 3 LH AVAIL.
48- 18615A40 18-1/4 19C AL 3 LH AVAIL.
17-1/4 19C AL 3 RH AVAIL.
19-3/4 19C AL 3 RH AVAIL. HISTORICAL PROPELLER CHARTS
48- 18614A40 18-1/4 19C AL 3 RH AVAIL.
17-3/4 17C AL 3 LH AVAIL.
18-3/4 17C AL 3 LH AVAIL.
18-3/4 17C AL 3 RH AVAIL.
18-3/4 17C AL 3 RH AVAIL.
18-1/4 15C AL 3 LH AVAIL.
19-1/4 15C AL 3 LH AVAIL.
18-1/4 15C AL 3 RH AVAIL.
19-1/4 15C AL 3 RH AVAIL.
19-1/2 13C AL 3 RH AVAIL.
20 11C AL 3 RH AVAIL.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 899
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
