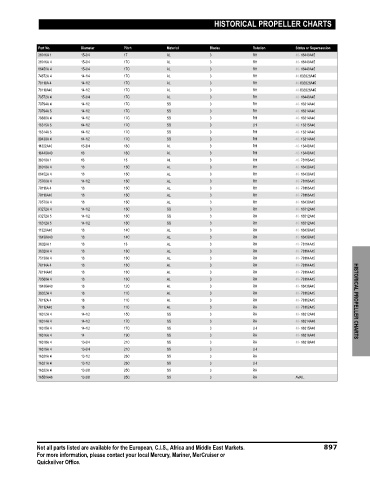

HISTORICAL PROPELLER CHARTS
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
36016A 1 15-3/4 17 AL 3 RH 48- 16440A45
36016A 4 15-3/4 17C AL 3 RH 48- 16440A45
66450A 4 15-3/4 17C AL 3 RH 48- 16440A45
74872A 4 14-1/4 17C AL 3 RH 48-832828A45
78118A 4 14-1/2 17C AL 3 RH 48-832828A45
78118A40 14-1/2 17C AL 3 RH 48-832828A45
79572A 4 15-3/4 17C AL 3 RH 48- 16440A45
79794A 4 14-1/2 17C SS 3 RH 48- 16314A46
79794A 5 14-1/2 17C SS 3 RH 48- 16314A46
79830A 4 14-1/2 17C SS 3 RH 48- 16314A46
16315A 5 14-1/2 17C SS 3 LH 48- 16315A46
16314A 5 14-1/2 17C SS 3 RH 48- 16314A46
88438A 4 14-1/2 17C SS 3 RH 48- 16314A46
11322A40 15-3/4 16C AL 3 RH 48- 16440A45
16440A40 16 16C AL 3 RH 48- 16440A45
36018A 1 16 15 AL 3 RH 48- 78116A45
36018A 4 16 15C AL 3 RH 48- 16438A45
66452A 4 16 15C AL 3 RH 48- 16438A45
75760A 4 14-1/2 15C AL 3 RH 48- 78116A45
78116A 4 16 15C AL 3 RH 48- 78116A45
78116A40 16 15C AL 3 RH 48- 78116A45
79570A 4 16 15C AL 3 RH 48- 16438A45
93272A 4 14-1/2 15C SS 3 RH 48- 16312A46
93272A 5 14-1/2 15C SS 3 RH 48- 16312A46
16312A 5 14-1/2 15C SS 3 RH 48- 16312A46
11320A40 16 14C AL 3 RH 48- 16438A45
16438A40 16 14C AL 3 RH 48- 16438A45
36020A 1 16 13 AL 3 RH 48- 78114A45
36020A 4 16 13C AL 3 RH 48- 78114A45
75138A 4 16 13C AL 3 RH 48- 78114A45
78114A 4 16 13C AL 3 RH 48- 78114A45
78114A40 16 13C AL 3 RH 48- 78114A45
79568A 4 16 13C AL 3 RH 48- 78114A45
16436A40 16 12C AL 3 RH 48- 16436A45
36022A 4 16 11C AL 3 RH 48- 78112A45
78112A 4 16 11C AL 3 RH 48- 78112A45 HISTORICAL PROPELLER CHARTS
78112A40 16 11C AL 3 RH 48- 78112A45
16312A 4 14-1/2 15C SS 3 RH 48- 16312A46
16314A 4 14-1/2 17C SS 3 RH 48- 16314A46
16315A 4 14-1/2 17C SS 3 LH 48- 16315A46
16316A 4 14 19C SS 3 RH 48- 16316A46
16318A 4 13-3/4 21C SS 3 RH 48- 16318A46
16319A 4 13-3/4 21C SS 3 LH
16320A 4 13-1/2 23C SS 3 RH
16321A 4 13-1/2 23C SS 3 LH
16322A 4 13-3/8 25C SS 3 RH
16550A46 13-3/8 25C SS 3 RH AVAIL.
Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 897
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
