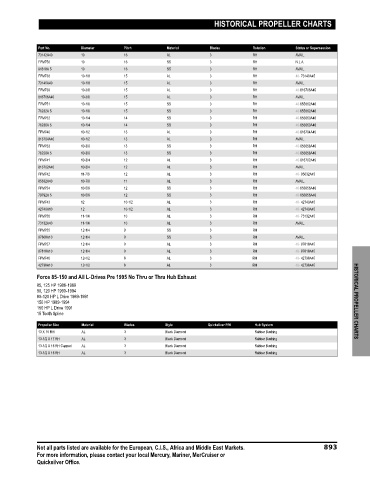

HISTORICAL PROPELLER CHARTS

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
73142A40 10 16 AL 3 RH AVAIL.
FPM750 10 16 SS 3 RH N.L.A.
91818A 5 10 16 SS 3 RH AVAIL.
FPM738 10-1/8 15 AL 3 RH 48- 73140A45
73140A40 10-1/8 15 AL 3 RH AVAIL.
FPM739 10-3/8 15 AL 3 RH 48-816706A45
816706A40 10-3/8 15 AL 3 RH AVAIL.
FPM751 10-1/8 15 SS 3 RH 48-855862A46
76232A 5 10-1/8 15 SS 3 RH 48-855862A46
FPM752 10-1/4 14 SS 3 RH 48-855860A46
76230A 5 10-1/4 14 SS 3 RH 48-855860A46
FPM740 10-1/2 13 AL 3 RH 48-816704A45
816704A40 10-1/2 13 AL 3 RH AVAIL.
FPM753 10-3/8 13 SS 3 RH 48-855858A46
76228A 5 10-3/8 13 SS 3 RH 48-855858A46
FPM741 10-3/4 12 AL 3 RH 48-816702A45
816702A40 10-3/4 12 AL 3 RH AVAIL.
FPM742 11-7/8 12 AL 3 RH 48- 85632A45
85632A40 10-7/8 11 AL 3 RH AVAIL.
FPM754 10-5/8 12 SS 3 RH 48-855856A46
79792A 5 10-5/8 12 SS 3 RH 48-855856A46
FPM743 12 10-1/2 AL 3 RH 48- 42740A45
42740A10 12 10-1/2 AL 3 RH 48- 42740A45
FPM756 11-1/4 10 AL 3 RH 48- 73132A45
73132A40 11-1/4 10 AL 3 RH AVAIL.
FPM755 12-1/4 9 SS 3 RH
97868A10 12-1/4 9 SS 3 RH AVAIL.
FPM757 12-1/4 9 AL 3 RH 48- 87818A45
87818A10 12-1/4 9 AL 3 RH 48- 87818A45
FPM746 12-1/2 8 AL 3 RH 48- 42738A45
42738A10 12-1/2 8 AL 3 RH 48- 42738A45
Force 85‑150 and All L‑Drives Pre 1995 No Thru or Thru Hub Exhaust
85, 125 HP 1988‑1989
90, 120 HP 1990‑1994
90‑120 HP L Drive 1989‑1991
150 HP 1989‑1994 HISTORICAL PROPELLER CHARTS
150 HP L Drive 1991
15 Tooth Spline
Propeller Size Material Blades Style Quicksliver P/N Hub System
13 X 19 RH AL 3 Black Diamond Rubber Bushing
13-1/2 X 17 RH AL 3 Black Diamond Rubber Bushing
13-1/2 X 15 RH Cupped AL 3 Black Diamond Rubber Bushing
13-1/2 X 15 RH AL 3 Black Diamond Rubber Bushing

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 893
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
