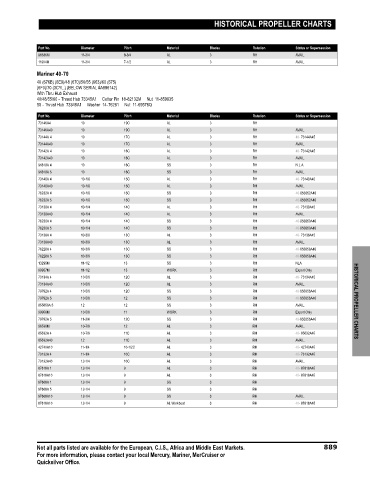

HISTORICAL PROPELLER CHARTS

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
96636M 11-3/4 8-3/4 AL 3 RH AVAIL.
11904M 11-3/4 7-1/2 AL 3 RH AVAIL.
Mariner 40‑70
40 (676B) (6E9)/48 (670)/50/55 (663)/60 (675)
(6F0)/70 (3CYL.) (BELOW SERIAL #A996142)
With Thru Hub Exhaust
40/48/55/60 ‑ Thrust Hub 73345A1 Cotter Pin 18‑82132M Nut 11‑859935
50 ‑ Thrust Hub 73345A1 Washer 14‑76281 Nut 11‑69578Q

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
73146A4 10 19C AL 3 RH
73146A40 10 19C AL 3 RH AVAIL.
73144A 4 10 17C AL 3 RH 48- 73144A45
73144A40 10 17C AL 3 RH AVAIL.
73142A 4 10 16C AL 3 RH 48- 73142A45
73142A40 10 16C AL 3 RH AVAIL.
91818A 4 10 16C SS 3 RH N.L.A.
91818A 5 10 16C SS 3 RH AVAIL.
73140A 4 10-1/8 15C AL 3 RH 48- 73140A45
73140A40 10-1/8 15C AL 3 RH AVAIL.
76232A 4 10-1/8 15C SS 3 RH 48-855862A46
76232A 5 10-1/8 15C SS 3 RH 48-855862A46
73138A 4 10-1/4 14C AL 3 RH 48- 73138A45
73138A40 10-1/4 14C AL 3 RH AVAIL.
76230A 4 10-1/4 14C SS 3 RH 48-855860A46
76230A 5 10-1/4 14C SS 3 RH 48-855860A46
73136A 4 10-3/8 13C AL 3 RH 48- 73136A45
73136A40 10-3/8 13C AL 3 RH AVAIL.
76228A 4 10-3/8 13C SS 3 RH 48-855858A46
76228A 5 10-3/8 13C SS 3 RH 48-855858A46
13295M 11-1/2 13 SS 3 RH NLA
99957M 11-1/2 13 WORK 3 RH Export Only
73134A 4 10-5/8 12C AL 3 RH 48- 73134A45
73134A40 10-5/8 12C AL 3 RH AVAIL.
79792A 4 10-5/8 12C SS 3 RH 48-855856A46
79792A 5 10-5/8 12 SS 3 RH 48-855856A46
855856A 5 12 12 SS 3 RH AVAIL. HISTORICAL PROPELLER CHARTS
99956M 10-5/8 11 WORK 3 RH Export Only
79792A 5 11-3/4 12C SS 3 RH 48-855856A46
96536M 10-7/8 12 AL 3 RH AVAIL.
85632A 4 10-7/8 11C AL 3 RH 48- 85632A45
85632A40 12 11C AL 3 RH AVAIL.
42740A10 11-1/4 10-1/2C AL 3 RH 48- 42740A45
73132A 4 11-1/4 10C AL 3 RH 48- 73132A45
73132A40 12-1/4 10C AL 3 RH AVAIL.
87818A 1 12-1/4 9 AL 3 RH 48- 87818A45
87818A10 12-1/4 9 AL 3 RH 48- 87818A45
97868A 1 12-1/4 9 SS 3 RH
97868A 5 12-1/4 9 SS 3 RH
97868A10 12-1/4 9 SS 3 RH AVAIL.
87818A10 12-1/4 9 AL Workboat 3 RH 48- 87818A45

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 889
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
