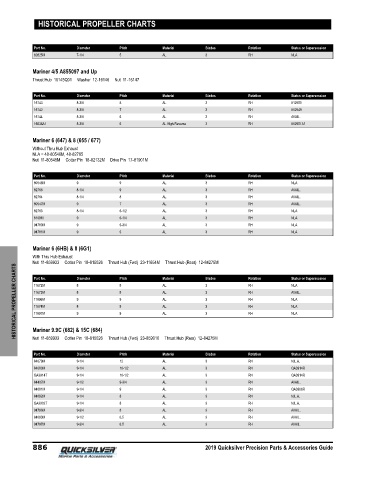

HISTORICAL PROPELLER CHARTS

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
82825M 7-1/4 5 AL 3 RH NLA

Mariner 4/5 A855097 and Up
Thrust Hub 16145Q01 Washer 12‑16146 Nut 11‑16147

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
16143 8-3/8 8 AL 3 RH 812950
16142 8-3/8 7 AL 3 RH 812949
16144 8-3/8 6 AL 3 RH AVAIL.
16836A1 8-3/8 6 AL High Reverse 3 RH 812951A1

Mariner 6 (647) & 8 (655 / 677)
Without Thru Hub Exhaust
NLA = 48‑80546M, 48‑82765
Nut 11‑80545M Cotter Pin 18‑82132M Drive Pin 17‑81901M

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
80548M 9 9 AL 3 RH NLA
82766 8-1/4 9 AL 3 RH AVAIL.
82764 8-1/4 8 AL 3 RH AVAIL.
80547M 9 7 AL 3 RH AVAIL.
82763 8-1/4 6-1/2 AL 3 RH NLA
8109M 9 6-1/4 AL 3 RH NLA
94780M 9 5-3/4 AL 3 RH NLA
94781M 9 5 AL 3 RH NLA

Mariner 6 (6HB) & 8 (6G1)
With Thru Hub Exhaust
Nut 11‑859933 Cotter Pin 18‑815026 Thrust Hub (Fwd) 23‑11654M Thrust Hub (Rear) 12‑84275M Rotation Status or Supersession
HISTORICAL PROPELLER CHARTS 11672M 8 8 9 8 9 8 8 9 8 9 AL 3 3 3 3 3 RH NLA
Pitch
Material
Part No.
Blades
Diameter
RH
AVAIL.
AL
11673M
11896M
AL
NLA
RH
RH
11674M
AL
NLA
11897M
AL
RH
NLA
Mariner 9.9C (682) & 15C (684)
Nut 11‑859933 Cotter Pin 18‑815026 Thrust Hub (Fwd) 23‑859916 Thrust Hub (Rear) 12‑84275M
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
84079M 9-1/4 12 AL 3 RH N.L.A.
84080M 9-1/4 10-1/2 AL 3 RH QA3914R
QA3914T 9-1/4 10-1/2 AL 3 RH QA3914R
84407M 9-1/2 9-3/4 AL 3 RH AVAIL.
84081M 9-1/4 9 AL 3 RH QA3906R
84082M 9-1/4 8 AL 3 RH N.L.A.
QA3902T 9-1/4 8 AL 3 RH N.L.A.
94786M 9-3/4 8 AL 3 RH AVAIL.
84083M 9-1/2 6.5 AL 3 RH AVAIL.
94787M 9-3/4 6.5 AL 3 RH AVAIL.
886 2019 Quicksilver Precision Parts & Accessories Guide
