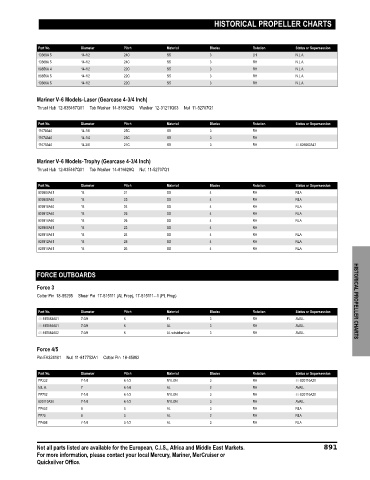

HISTORICAL PROPELLER CHARTS

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
13369A 5 14-1/2 24C SS 3 LH N.L.A.
13368A 5 14-1/2 24C SS 3 RH N.L.A.
89856A 4 14-1/2 22C SS 3 RH N.L.A.
89856A 5 14-1/2 22C SS 3 RH N.L.A.
13366A 5 14-1/2 22C SS 3 RH N.L.A.

Mariner V‑6 Models‑Laser (Gearcase 4‑3/4 Inch)
Thrust Hub 12‑835467Q01 Tab Washer 14‑816629Q Washer 12‑31211Q03 Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
11078A40 14-1/8 25C SS 3 RH
11074A40 14-1/4 23C SS 3 RH
11070A40 14-3/8 21C SS 3 RH 48-825862A47

Mariner V‑6 Models‑Trophy (Gearcase 4‑3/4 Inch)
Thrust Hub 12‑835467Q01 Tab Washer 14‑816629Q Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
825904A41 14 21 SS 4 RH NLA
825908A40 14 23 SS 4 RH NLA
825910A40 14 24 SS 4 RH NLA
825912A40 14 25 SS 4 RH NLA
825914A40 14 26 SS 4 RH NLA
825908A41 14 23 SS 4 RH
825910A41 14 24 SS 4 RH NLA
825912A41 14 25 SS 4 RH NLA
825914A41 14 26 SS 4 RH NLA

FORCE OUTBOARDS

Force 3
Cotter Pin 18‑95295 Shear Pin 17‑815111 (AL Prop), 17‑815111‑‑1 (PL Prop) HISTORICAL PROPELLER CHARTS

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
48-815083A01 7-3/8 6 PL 3 RH AVAIL.
48-815084A01 7-3/8 6 AL 3 RH AVAIL.
48-815084A02 7-3/8 6 AL w/rubber hub 3 RH AVAIL.

Force 4/5
Pin FA324101 Nut 11‑817752A1 Cotter Pin 18‑45882

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
FP332 7-1/4 6-1/2 NYLON 3 RH 48-820110A20
N.L.A. 7 6-1/4 AL 2 RH AVAIL.
FP712 7-1/4 6-1/2 NYLON 3 RH 48-820110A20
820110A20 7-1/4 6-1/2 NYLON 3 RH AVAIL.
FP652 8 5 AL 3 RH NLA
FP75 8 5 AL 2 RH NLA
FP488 7-1/4 5-1/2 AL 3 RH NLA

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 891
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
