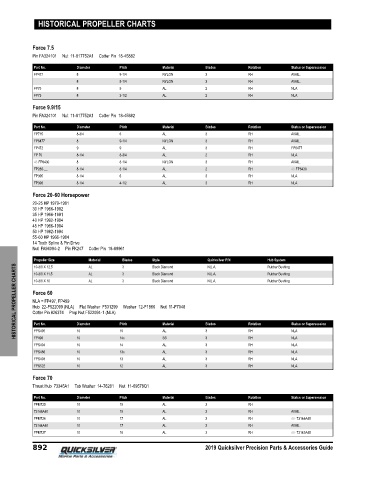

Page 899 - Quicksilver Accesories Guide 2019

HISTORICAL PROPELLER CHARTS

Force 7.5
Pin FA324101 Nut 11‑817752A1 Cotter Pin 18‑45882
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
FP477 8 9-1/4 NYLON 3 RH AVAIL.
8 8-1/4 NYLON 3 RH AVAIL.
FP75 8 5 AL 2 RH NLA
FP73 8 3-1/2 AL 2 RH NLA
Force 9.9/15
Pin FA324101 Nut 11‑817752A1 Cotter Pin 18‑45882

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
FP715 8-3/4 6 AL 3 RH AVAIL.
FP6477 8 9-1/4 NYLON 3 RH AVAIL.
FP472 9 9 AL 3 RH FP6477
FP 70 8-1/4 8-3/4 AL 2 RH NLA
48-FP6430 8 8-1/4 NYLON 3 RH AVAIL.
FP286-__ 8-1/4 8-1/4 AL 2 RH 48-FP6430
FP395 8-1/4 6 AL 3 RH NLA
FP396 8-1/4 4-1/2 AL 3 RH NLA

Force 20‑60 Horsepower
20‑25 HP 1979‑1981
30 HP 1966‑1982
35 HP 1966‑1991
40 HP 1992‑1994
45 HP 1966‑1984
50 HP 1982‑1994
55‑60 HP 1966‑1984
14 Tooth Spline & Pin Drive
Nut FA94094‑2 Pin FK247 Cotter Pin 18‑89961
Propeller Size Material Blades Style Quicksilver P/N Hub System
HISTORICAL PROPELLER CHARTS Force 60 AL 3 Black Diamond N.L.A. Rubber Bushing
3
N.L.A.
10-3/8 X 12.5
Rubber Bushing
AL
Black Diamond
N.L.A.
Black Diamond
AL
3
10-3/8 X 11.5
Rubber Bushing
10-3/8 X 10
NLA = FP497, FP499
Hub 22‑F522099 (NLA) Flat Washer F531299 Washer 12‑F1866 Nut 11‑F7048
Cotter Pin 826374 Prop Nut F522094‑1 (NLA)
Part No.
NLA
15
3
AL
RH
10
FPS495
FP496
10
SS
3
14c
NLA
RH
AL
NLA
RH
FPS494 Diameter Pitch Material Blades Rotation Status or Supersession
3
14
10
FPS486 10 13c AL 3 RH NLA
FPS493 10 13 AL 3 RH NLA
FPS522 10 12 AL 3 RH NLA
Force 70
Thrust Hub 73345A1 Tab Washer 14‑76281 Nut 11‑69578Q1
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
FPM735 10 19 AL 3 RH
73146A40 10 19 AL 3 RH AVAIL.
FPM736 10 17 AL 3 RH 48- 73144A45
73144A40 10 17 AL 3 RH AVAIL.
FPM737 10 16 AL 3 RH 48- 73142A45
