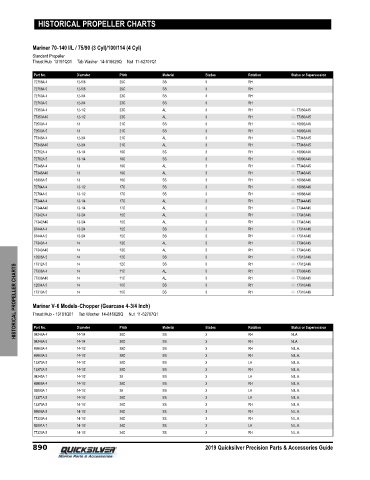

HISTORICAL PROPELLER CHARTS

Mariner 70‑140 I/L / 75/90 (3 Cyl)/100/114 (4 Cyl)
Standard Propeller
Thrust Hub 13191Q01 Tab Washer 14‑816629Q Nut 11‑52707Q1

Part No. Diameter Pitch Material Blades Rotation Status or Supersession
72758A 4 12-5/8 25C SS 3 RH
72758A 5 12-5/8 25C SS 3 RH
72760A 4 12-3/4 23C SS 3 RH
72760A 5 12-3/4 23C SS 3 RH
77350A 4 12-1/2 23C AL 3 RH 48- 77350A45
77350A40 12-1/2 23C AL 3 RH 48- 77350A45
72500A 4 13 21C SS 3 RH 48- 16992A46
72500A 5 13 21C SS 3 RH 48- 16992A46
77348A 4 12-3/4 21C AL 3 RH 48- 77348A45
77348A40 12-3/4 21C AL 3 RH 48- 77348A45
72762A 4 13-1/4 19C SS 3 RH 48- 16990A46
72762A 5 13-1/4 19C SS 3 RH 48- 16990A46
77346A 4 13 19C AL 3 RH 48- 77346A45
77346A40 13 19C AL 3 RH 48- 77346A45
16988A 5 13 18C SS 3 RH 48- 16988A46
72764A 4 13-1/2 17C SS 3 RH 48- 16988A46
72764A 5 13-1/2 17C SS 3 RH 48- 16988A46
77344A 4 13-1/4 17C AL 3 RH 48- 77344A45
77344A40 13-1/4 17C AL 3 RH 48- 77344A45
77342A 4 13-3/4 15C AL 3 RH 48- 77342A45
77342A40 13-3/4 15C AL 3 RH 48- 77342A45
87444A 4 13-3/4 15C SS 3 RH 48- 17314A46
87444A 5 13-3/4 15C SS 3 RH 48- 17314A46
77340A 4 14 13C AL 3 RH 48- 77340A45
77340A40 14 13C AL 3 RH 48- 77340A45
12606A 5 14 12C SS 3 3 3 3 RH 48- 17312A46
48- 17312A46
SS
14
RH
12C
17312A 5
HISTORICAL PROPELLER CHARTS Mariner V‑6 Models‑Chopper (Gearcase 4‑3/4 Inch) SS 3 3 RH 48- 17310A46
AL
RH
11C
77338A 4
48- 77338A45
14
48- 77338A45
RH
14
77338A40
11C
AL
14
10C
12604A 5
17310A 5
14
SS
RH
48- 17310A46
10C
Thrust Hub ‑ 13191Q01 Tab Washer 14‑816629Q Nut 11‑52707Q1
Part No.
30C
3
98246A 4
SS
RH
14-1/4
NLA
NLA
SS
3
14-1/4
RH
30C
98246A 5 Diameter Pitch Material Blades Rotation Status or Supersession
89860A 4 14-1/2 28C SS 3 RH N.L.A.
89860A 5 14-1/2 28C SS 3 RH N.L.A.
13373A 5 14-1/2 28C SS 3 LH N.L.A.
13372A 5 14-1/2 28C SS 3 RH N.L.A.
98245A 1 14-1/2 28 SS 3 LH N.L.A.
89858A 4 14-1/2 26C SS 3 RH N.L.A.
93593A 1 14-1/2 26 SS 3 LH N.L.A.
13371A 5 14-1/2 26C SS 3 LH N.L.A.
13370A 5 14-1/2 26C SS 3 RH N.L.A.
89858A 5 14-1/2 26C SS 3 RH N.L.A.
77320A 4 14-1/2 24C SS 3 RH N.L.A.
93591A 1 14-1/2 24C SS 3 LH N.L.A.
77320A 5 14-1/2 24C SS 3 RH N.L.A.
