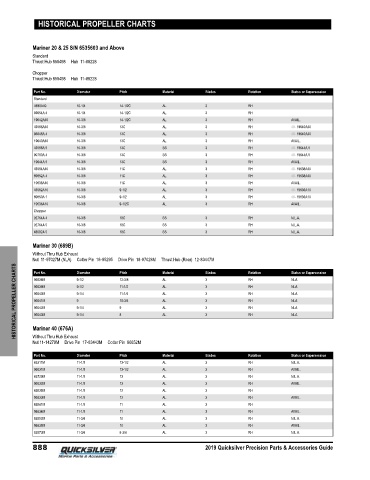

HISTORICAL PROPELLER CHARTS

Mariner 20 & 25 S/N 6535603 and Above
Standard
Thrust Hub 858498 Hub 11‑88228
Chopper
Thrust Hub 858498 Hub 11‑88228
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
Standard
4590A40 10-1/4 14-1/2C AL 3 RH
89854A 4 10-1/4 14-1/2C AL 3 RH
19642A40 10-3/8 14-1/2C AL 3 RH AVAIL.
43586A40 10-3/8 13C AL 3 RH 48- 19640A40
86848A 4 10-3/8 13C AL 3 RH 48- 19640A40
19640A40 10-3/8 13C AL 3 RH AVAIL.
43588A 5 10-3/8 13C SS 3 RH 48- 19644A 5
90780A 4 10-3/8 13C SS 3 RH 48- 19644A 5
19644A 5 10-3/8 13C SS 3 RH AVAIL.
43584A40 10-3/8 11C AL 3 RH 48- 19638A40
89852A 4 10-3/8 11C AL 3 RH 48- 19638A40
19638A40 10-3/8 11C AL 3 RH AVAIL.
43582A10 10-3/8 9-1/2 AL 3 RH 48- 19636A10
89850A 1 10-3/8 9-1/2 AL 3 RH 48- 19636A10
19636A10 10-3/8 9-1/2C AL 3 RH AVAIL.
Chopper
92764A 4 10-3/8 18C SS 3 RH N.L.A.
92764A 5 10-3/8 18C SS 3 RH N.L.A.
43592A 5 10-3/8 18C SS 3 RH N.L.A.

Mariner 30 (689B)
Without Thru Hub Exhaust
Nut 11‑97027M (NLA) Cotter Pin 18‑95295 Drive Pin 18‑97028M Thrust Hub (Rear) 12‑83447M Rotation Status or Supersession
HISTORICAL PROPELLER CHARTS 96639M 9-1/2 11-1/2 AL 3 3 3 3 3 RH NLA
Part No.
Diameter
Blades
Pitch
Material
3
NLA
RH
9-1/2
12-3/8
AL
96638M
RH
9-1/4
96640M
11-1/4
AL
NLA
AL
9
10-3/4
96641M
RH
NLA
RH
9
AL
NLA
96642M
9-1/4
8
AL
96643M
NLA
9-1/4
RH
Mariner 40 (676A)
Without Thru Hub Exhaust
Nut 11‑14279M Drive Pin 17‑83443M Cotter Pin 80652M
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
83311M 11-1/2 13-1/2 AL 3 RH N.L.A.
96631M 11-1/2 13-1/2 AL 3 RH AVAIL.
83729M 11-1/2 13 AL 3 RH N.L.A.
96632M 11-1/2 13 AL 3 RH AVAIL.
83535M 11-1/2 12 AL 3 RH
96633M 11-1/2 12 AL 3 RH AVAIL.
83541M 11-1/2 11 AL 3 RH
96634M 11-1/2 11 AL 3 RH AVAIL.
83552M 11-3/4 10 AL 3 RH N.L.A.
96635M 11-3/4 10 AL 3 RH AVAIL.
83573M 11-3/4 8-3/4 AL 3 RH N.L.A.
888 2019 Quicksilver Precision Parts & Accessories Guide
