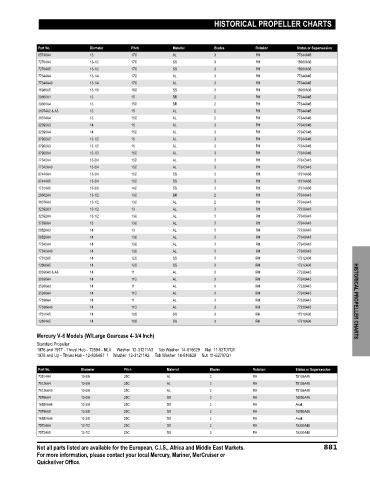

HISTORICAL PROPELLER CHARTS
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
65748A4 13 17C AL 3 RH 77344A45
72764A4 13-1/2 17C SS 3 RH 16988A36
72764A5 13-1/2 17C SS 3 RH 16988A36
77344A4 13-1/4 17C AL 3 RH 77344A45
77344A40 13-1/4 17C AL 3 RH 77344A45
16986A5 13-1/8 16C SS 3 RH 16986A36
29660A1 13 15 BR 2 RH 77344A45
29660A4 13 15C BR 2 RH 77344A45
31074A2 & A3 13 15 AL 2 RH 77344A45
31074A4 13 15C AL 2 RH 77344A45
32390A3 14 15 AL 3 RH 77340A45
32390A4 14 15C AL 3 RH 77342A45
37900A2 12-1/2 15 AL 3 RH 77344A45
37900A3 12-1/2 15 AL 3 RH 77344A45
37900A4 12-1/2 15C AL 3 RH 77344A45
77342A4 13-3/4 15C AL 3 RH 77342A45
77342A40 13-3/4 15C AL 3 RH 77342A45
87444A4 13-3/4 15C SS 3 RH 17314A36
87444A5 13-3/4 15C SS 3 RH 17314A36
17314A5 13-3/8 14C SS 3 RH 17314A36
29662A4 13-1/2 13C BR 2 RH 77344A45
31076A4 13-1/2 13C AL 2 RH 77344A45
32392A3 13-1/2 13 AL 3 RH 77338A45
32392A4 13-1/2 13C AL 3 RH 77340A45
37898A4 13 13C AL 3 RH 77344A45
58826A3 14 13 AL 3 RH 77338A45
58826A4 14 13C AL 3 RH 77340A45
77340A4 14 13C AL 3 RH 77340A45
77340A40 14 13C AL 3 RH 77340A45
17312A5 14 12C SS 3 RH 17312A36
12606A5 14 12C SS 3 RH 17312A36
30396A1 & A3 14 11 AL 3 RH 77338A45
30396A4 14 11C AL 3 RH 77340A45
35936A3 14 11 AL 3 RH 77338A45
35936A4 14 11C AL 3 RH 77340A45
77338A4 14 11 AL 3 RH 77338A45 HISTORICAL PROPELLER CHARTS
77338A40 14 11C AL 3 RH 77338A45
17310A5 14 10C SS 3 RH 17310A36
12604A5 14 10C SS 3 RH 17310A36
Mercury V‑6 Models (W/Large Gearcase 4‑3/4 Inch)
Standard Propeller
1976 and 1977 ‑ Thrust Hub ‑ 72894 ‑ NLA Washer 12‑31211A3 Tab Washer 14‑816629 Nut 11‑52707Q1
1978 and Up ‑ Thrust Hub ‑ 12‑835467 1 Washer 12‑31211A3 Tab Washer 14‑816629 Nut 11‑52707Q1
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
73514A4 13-3/8 25C AL 3 RH 78126A45
78126A4 13-3/8 25C AL 3 RH 78126A45
78126A40 13-3/8 25C AL 3 RH 78126A45
79796A4 13-3/8 25C SS 3 RH 16550A46
16550A46 13-3/8 25C SS 3 RH Avail.
79796A5 13-3/8 25C SS 3 RH 16550A46
16550A46 13-3/8 25C SS 3 RH Avail.
75724A4 13-1/2 23C SS 3 RH 16320A46
75724A5 13-1/2 23C SS 3 RH 16320A46
Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 881
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
