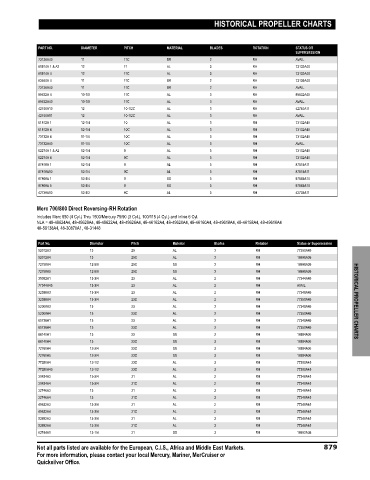

HISTORICAL PROPELLER CHARTS
PART NO. DIAMETER PITCH MATERIAL BLADES ROTATION STATUS OR
SUPERSESSION
73136A40 11 11C BR 2 RH AVAIL.
61814A 1 & A2 12 11 AL 3 RH 73132A40
61814A 4 12 11C AL 3 RH 73132A40
63460A 4 11 11C BR 2 RH 73136A40
73136A40 11 11C BR 2 RH AVAIL.
85632A 4 10-7/8 11C AL 3 RH 85632A40
85632A40 10-7/8 11C AL 3 RH AVAIL.
42740A10 12 10-1/2C AL 3 RH 42740A11
42740A11 12 10-1/2C AL 3 RH AVAIL.
61812A 1 12-1/4 10 AL 3 RH 73132A40
61812A 4 12-1/4 10C AL 3 RH 73132A40
73132A 4 11-1/4 10C AL 3 RH 73132A40
73132A40 11-1/4 10C AL 3 RH AVAIL.
62274A 1 & A2 12-1/4 9 AL 3 RH 73132A40
62274A 4 12-1/4 9C AL 3 RH 73132A40
87818A 1 12-1/4 9 AL 3 RH 87818A11
87818A10 12-1/4 9C AL 3 RH 87818A11
97868A 1 12-1/4 9 SS 3 RH 97868A10
97868A 5 12-1/4 9 SS 3 RH 97868A10
42738A10 12-1/2 8C AL 3 RH 42738A11
Merc 700/800 Direct Reversing‑RH Rotation
Includes Merc 650 (4 Cyl.) Thru 1500/Mercury 75/90 (3 Cyl.), 100/115 (4 Cyl.) and Inline 6 Cyl.
NLA = 48‑49624A4, 48‑49628A4, 48‑49622A4, 48‑49626A4, 48‑46162A4, 48‑49620A4, 48‑46160A4, 48‑49618A4, 48‑46158A4, 48‑49616A4
48‑59138A4, 48‑30870A1, 48‑31448
Part No. Diameter Pitch Material Blades Rotation Status or Supersession
52012A3 13 25 AL 3 RH 77350A45
52012A4 13 25C AL 3 RH 16996A36
72758A4 12-5/8 25C SS 3 RH 16996A36
72758A5 12-5/8 25C SS 3 RH 16996A36
31082A1 13-3/4 23 AL 2 RH 77344A45
77344A45 13-3/4 23 AL 2 RH AVAIL.
32386A3 13-3/4 23 AL 2 RH 77348A45
32386A4 13-3/4 23C AL 2 RH 77350A45 HISTORICAL PROPELLER CHARTS
52008A3 13 23 AL 3 RH 77348A45
52008A4 13 23C AL 3 RH 77350A45
65736A1 13 23 AL 3 RH 77348A45
65736A4 13 23C AL 3 RH 77350A45
66140A1 13 23 SS 3 RH 16994A36
66140A4 13 23C SS 3 RH 16994A36
72760A4 12-3/4 23C SS 3 RH 16994A36
72760A5 12-3/4 23C SS 3 RH 16994A36
77350A4 12-1/2 23C AL 3 RH 77350A45
77350A40 12-1/2 23C AL 3 RH 77350A45
31454A3 13-3/4 21 AL 2 RH 77346A45
31454A4 13-3/4 21C AL 2 RH 77348A45
32746A3 13 21 AL 3 RH 77346A45
32746A4 13 21C AL 3 RH 77348A45
49632A3 13-3/4 21 AL 2 RH 77346A45
49632A4 13-3/4 21C AL 2 RH 77348A45
53892A3 13-3/4 21 AL 3 RH 77346A45
53892A4 13-3/4 21C AL 3 RH 77348A45
63744A1 13-1/4 21 SS 3 RH 16992A36
Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 879
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
