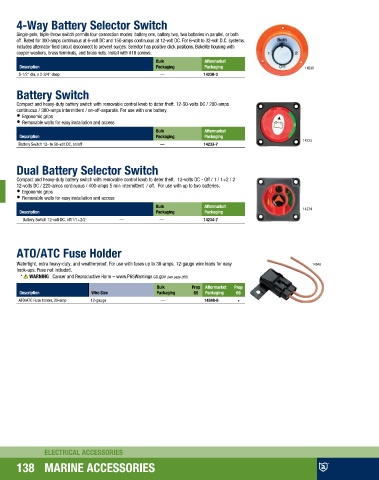

Page 140 - Attwood Marine Products Collection 2020

4-Way Battery Selector Switch
Single-pole, triple-throw switch permits four connection modes: battery one, battery two, two batteries in parallel, or both
off. Rated for 300-amps continuous at 6-volt DC and 150-amps continuous at 12-volt DC. For 6-volt to 32-volt D.C. systems.
Includes alternator field circuit disconnect to prevent surges. Selector has positive click positions. Bakelite housing with
copper washers, brass terminals, and brass nuts. Install with #10 screws.
Bulk Aftermarket
Description Packaging Packaging 14230
5-1/2" dia. x 2-3/4" deep — 14230-3

Battery Switch
Compact and heavy-duty battery switch with removable control knob to deter theft. 12-50-volts DC / 200-amps
continuous / 300-amps intermittent / on-off-separate. For use with one battery.
• Ergonomic grips
• Removable walls for easy installation and access
Bulk Aftermarket
Description Packaging Packaging
14233
Battery Switch 12- to 50-volt DC, on/off — 14233-7

Dual Battery Selector Switch

Compact and heavy-duty battery switch with removable control knob to deter theft. 12-volts DC - Off / 1 / 1+2 / 2
12-volts DC / 220-amps continuous / 400-amps 5 min intermittent / off. For use with up to two batteries.
• Ergonomic grips
• Removable walls for easy installation and access
Bulk Aftermarket 14234
Description Packaging Packaging
Battery Switch 12-volt DC, off/1/1+2/2 — — 14234-7

ATO/ATC Fuse Holder
Watertight, extra heavy-duty, and weatherproof. For use with fuses up to 30-amps. 12-gauge wire leads for easy 14348
hook-ups. Fuse not included.

Bulk Aftermarket Prop
Description Wire Size Packaging Packaging 65
ATO/ATC Fuse holder, 30-amp 12-gauge — 14348-6

ELECTRICAL ACCESSORIES

138 MARINE ACCESSORIES
