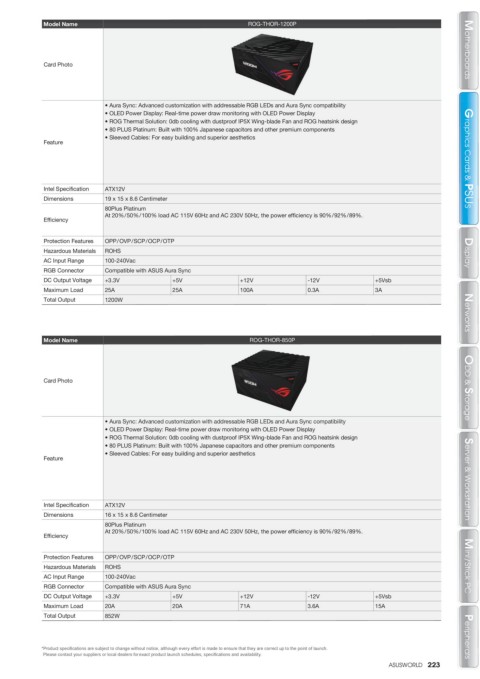

Model Name                                         ROG-THOR-1200P




            Card Photo                                                                      Motherboards            Motherboards





                           • Aura Sync: Advanced customization with addressable RGB LEDs and Aura Sync compatibility
                           • OLED Power Display: Real-time power draw monitoring with OLED Power Display
                           • ROG Thermal Solution: 0db cooling with dustproof IP5X Wing-blade Fan and ROG heatsink design
                           • 80 PLUS Platinum: Built with 100% Japanese capacitors and other premium components
                           • Sleeved Cables: For easy building and superior aesthetics
            Feature                                                                         Graphics Cards & PSUS   Graphics Cards & PSUS





            Intel Specification  ATX12V
            Dimensions     19 x 15 x 8.6 Centimeter
                           80Plus Platinum
                           At 20% / 50% / 100% load AC 115V 60Hz and AC 230V 50Hz, the power efficiency is 90% / 92% / 89%.
            Efficiency

            Protection Features  OPP / OVP / SCP / OCP / OTP
            Hazardous Materials  ROHS                                                       Display                 Display
            AC Input Range  100-240Vac
            RGB Connector  Compatible with ASUS Aura Sync
            DC Output Voltage  +3.3V        +5V              +12V            -12V             +5Vsb
            Maximum Load   25A              25A              100A            0.3A             3A
            Total Output   1200W                                                            Networks                Networks




            Model Name                                         ROG-THOR-850P




            Card Photo                                                                      ODD & Storage           ODD & Storage





                           • Aura Sync: Advanced customization with addressable RGB LEDs and Aura Sync compatibility
                           • OLED Power Display: Real-time power draw monitoring with OLED Power Display
                           • 80 PLUS Platinum: Built with 100% Japanese capacitors and other premium components
                           • Sleeved Cables: For easy building and superior aesthetics
            Feature        • ROG Thermal Solution: 0db cooling with dustproof IP5X Wing-blade Fan and ROG heatsink design Server & Workstation  Server & Workstation





            Intel Specification  ATX12V
            Dimensions     16 x 15 x 8.6 Centimeter
                           80Plus Platinum
                           At 20% / 50% / 100% load AC 115V 60Hz and AC 230V 50Hz, the power efficiency is 90% / 92% / 89%.
            Efficiency

            Protection Features  OPP / OVP / SCP / OCP / OTP
            Hazardous Materials  ROHS                                                       Mini / Stick PC         Mini / Stick PC
            AC Input Range  100-240Vac
            RGB Connector  Compatible with ASUS Aura Sync
            DC Output Voltage  +3.3V        +5V              +12V            -12V             +5Vsb
            Maximum Load   20A              20A              71A             3.6A             15A
            Total Output   852W



           *Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.   Peripherals  Peripherals
            Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
