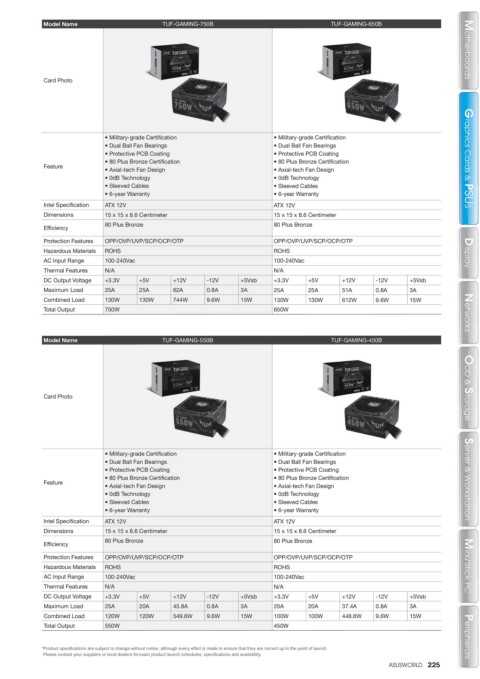

Model Name TUF-GAMING-750B TUF-GAMING-650B Motherboards

Card Photo
Motherboards

• Military-grade Certification • Military-grade Certification
• Dual Ball Fan Bearings • Dual Ball Fan Bearings
• Protective PCB Coating • Protective PCB Coating
• 80 Plus Bronze Certification • 80 Plus Bronze Certification Graphics Cards & PSUS Graphics Cards & PSUS
Feature
• Axial-tech Fan Design • Axial-tech Fan Design
• 0dB Technology • 0dB Technology
• Sleeved Cables • Sleeved Cables
• 6-year Warranty • 6-year Warranty
Intel Specification ATX 12V ATX 12V
Dimensions 15 x 15 x 8.6 Centimeter 15 x 15 x 8.6 Centimeter
80 Plus Bronze 80 Plus Bronze
Efficiency
Protection Features OPP/OVP/UVP/SCP/OCP/OTP OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS ROHS Display Display
AC Input Range 100-240Vac 100-240Vac
Thermal Features N/A N/A
DC Output Voltage +3.3V +5V +12V -12V +5Vsb +3.3V +5V +12V -12V +5Vsb
Maximum Load 25A 25A 62A 0.8A 3A 25A 25A 51A 0.8A 3A
Combined Load 130W 130W 744W 9.6W 15W 130W 130W 612W 9.6W 15W
Total Output 750W 650W Networks Networks

Model Name TUF-GAMING-550B TUF-GAMING-450B

Card Photo ODD & Storage ODD & Storage

• Military-grade Certification • Military-grade Certification
• Dual Ball Fan Bearings • Dual Ball Fan Bearings
• Protective PCB Coating • Protective PCB Coating
• 80 Plus Bronze Certification • 80 Plus Bronze Certification Server & Workstation Server & Workstation
Feature
• Axial-tech Fan Design • Axial-tech Fan Design
• 0dB Technology • 0dB Technology
• Sleeved Cables • Sleeved Cables
• 6-year Warranty • 6-year Warranty
Intel Specification ATX 12V ATX 12V
Dimensions 15 x 15 x 8.6 Centimeter 15 x 15 x 8.6 Centimeter
80 Plus Bronze 80 Plus Bronze
Efficiency
Protection Features OPP/OVP/UVP/SCP/OCP/OTP OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS ROHS Mini / Stick PC Mini / Stick PC
AC Input Range 100-240Vac 100-240Vac
Thermal Features N/A N/A
DC Output Voltage +3.3V +5V +12V -12V +5Vsb +3.3V +5V +12V -12V +5Vsb
Maximum Load 25A 20A 45.8A 0.8A 3A 20A 20A 37.4A 0.8A 3A
Combined Load 120W 120W 549.6W 9.6W 15W 100W 100W 448.8W 9.6W 15W
Total Output 550W 450W Peripherals Peripherals

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
