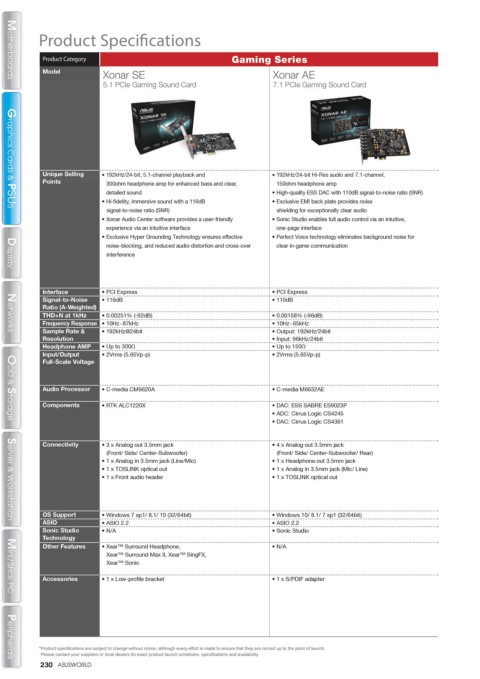

Product Speci cations

Product Category Motherboards Gaming Series
Xonar SE Xonar AE
Model
5.1 PCIe Gaming Sound Card 7.1 PCIe Gaming Sound Card
Motherboards

Unique Selling • 192kHz/24-bit, 5.1-channel playback and • 192kHz/24-bit Hi-Res audio and 7.1-channel,
Points 300ohm headphone amp for enhanced bass and clear, 150ohm headphone amp
detailed sound • High-quality ESS DAC with 110dB signal-to-noise ratio (SNR)
• Hi-fidelity, immersive sound with a 116dB • Exclusive EMI back plate provides noise
signal-to-noise ratio (SNR) shielding for exceptionally clear audio
Graphics Cards & PSUS
Graphics Cards & PSUS
• Xonar Audio Center software provides a user-friendly • Sonic Studio enables full audio control via an intuitive,
experience via an intuitive interface one-page interface
• Exclusive Hyper Grounding Technology ensures effective • Perfect Voice technology eliminates background noise for
noise-blocking, and reduced audio distortion and cross-over clear in-game communication
interference

Display
Display
Interface • PCI Express • PCI Express
Signal-to-Noise • 116dB • 110dB
Ratio (A-Weighted)
THD+N at 1kHz • 0.00251% (-92dB) • 0.00158% (-96dB)
Frequency Response • 10Hz~87kHz • 10Hz~65kHz
Sample Rate & • 192kHz@24bit • Output: 192kHz/24bit
Networks
Networks
Resolution • Input: 96kHz/24bit
Headphone AMP • Up to 300 • Up to 150
Input/Output • 2Vrms (5.65Vp-p) • 2Vrms (5.65Vp-p)
Full-Scale Voltage

Audio Processor • C-media CM6620A • C-media M6632AE
Components • RTK ALC1220X • DAC: ESS SABRE ES9023P
• ADC: Cirrus Logic CS4245
• DAC: Cirrus Logic CS4361
ODD & Storage
ODD & Storage
Connectivity • 3 x Analog out 3.5mm jack • 4 x Analog out 3.5mm jack
(Front/ Side/ Center-Subwoofer) (Front/ Side/ Center-Subwoofer/ Rear)
• 1 x Analog in 3.5mm jack (Line/Mic) • 1 x Headphone out 3.5mm jack
• 1 x TOSLINK optical out • 1 x Analog in 3.5mm jack (Mic/ Line)
• 1 x Front audio header • 1 x TOSLINK optical out

OS Support • Windows 7 sp1/ 8.1/ 10 (32/64bit) • Windows 10/ 8.1/ 7 sp1 (32/64bit)
ASIO • ASIO 2.2 • ASIO 2.2
Server & Workstation
Server & Workstation
Sonic Studio • N/A • Sonic Studio
Technology
Other Features • Xear™ Surround Headphone, • N/A
Xear™ Surround Max II, Xear™ SingFX,
Xear™ Sonic
Accessories • 1 x Low-profile bracket • 1 x S/PDIF adapter

Mini / Stick PC
Mini / Stick PC

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
