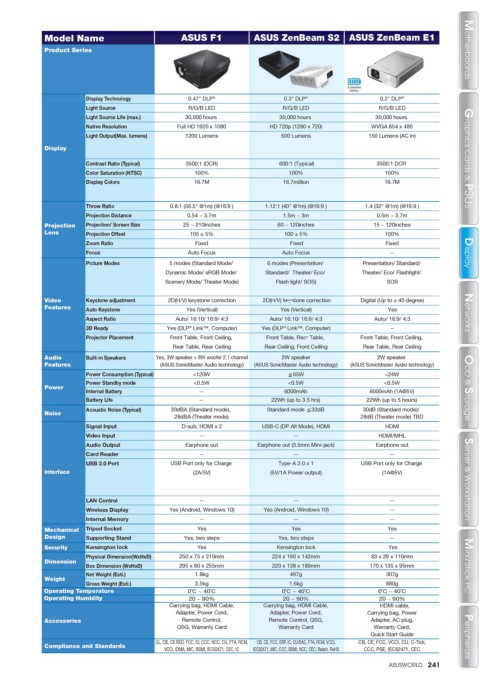

Model Name ASUS F1 ASUS ZenBeam S2 ASUS ZenBeam E1
Product Series Motherboards Motherboards

Embedded
Battery
Display Technology 0.47" DLP ® 0.3" DLP ® 0.2" DLP ®
Light Source R/G/B LED R/G/B LED R/G/B LED
Light Source Life (max.) 30,000 hours 30,000 hours 30,000 hours
Native Resolution Full HD 1920 x 1080 HD 720p (1280 x 720) WVGA 854 x 480
Light Output(Max. lumens) 1200 Lumens 500 Lumens 150 Lumens (AC in)
Display

Contrast Ratio (Typical) 3500:1 (DCR) 600:1 (Typical) Graphics Cards & PSUS1.4 (32" @1m) (@16:9 ) Graphics Cards & PSUS
3500:1 DCR
Color Saturation (NTSC) 100% 100% 100%
Display Colors 16.7M 16.7million 16.7M

Throw Ratio 0.8:1 (56.5" @1m) (@16:9 ) 1.12:1 (40" @1m) (@16:9 )
Projection Distance 0.54 ~ 3.7m 1.5m ~ 3m 0.5m ~ 3.7m
Projection Projection/ Screen Size 25 ~ 210inches 60 ~ 120inches 15 ~ 120inches
Lens Projection Offset 105 ± 5% 100 ± 5% 100%
Zoom Ratio Fixed Fixed Fixed
Focus Auto Focus Auto Focus Display -- Display
Picture Modes 5 modes (Standard Mode/ 6 modes (Presentation/ Presentation/ Standard/
Dynamic Mode/ sRGB Mode/ Standard/ Theater/ Eco/ Theater/ Eco/ Flashlight/
Scenery Mode/ Theater Mode) Flash light/ SOS) SOS

Video Keystone adjustment 2D(H/V) keystone correction 2D(H/V) keystone correction Digital (Up to ± 40 degree)
Features Auto Keystone Yes (Vertical) Yes (Vertical) Networks Yes Networks
Aspect Ratio Auto/ 16:10/ 16:9/ 4:3 Auto/ 16:10/ 16:9/ 4:3 Auto/ 16:9/ 4:3
®
®
3D Ready Yes (DLP Link™, Computer) Yes (DLP Link™, Computer) --
Projector Placement Front Table, Front Ceiling, Front Table, Rear Table, Front Table, Front Ceiling,
Rear Table, Rear Ceiling Rear Ceiling, Front Ceiling Rear Table, Rear Ceiling
Audio Built-in Speakers Yes, 3W speaker + 8W woofer 2.1 channel 2W speaker 2W speaker
Features (ASUS SonicMaster Audio technology) (ASUS SonicMaster Audio technology) (ASUS SonicMaster Audio technology)
Power Consumption (Typical) <120W ≦ 65W <24W
Power Standby mode <0.5W <0.5W <0.5W
Power ODD & Storage ODD & Storage
Internal Battery -- 6000mAh 6000mAh (1A@5V)
Battery Life -- 22Wh (up to 3.5 hrs) 22Wh (up to 5 hours)
Acoustic Noise (Typical) 30dBA (Standard mode), Standard mode ≦ 32dB 30dB (Standard mode)/
Noise
28dBA (Theater mode) 28dB (Theater mode) TBD
Signal Input D-sub, HDMI x 2 USB-C (DP Alt Mode), HDMI HDMI
Video Input -- -- HDMI/MHL
Audio Output Earphone out Earphone out (3.5mm Mini-jack) Earphone out
Card Reader -- -- --
USB 2.0 Port USB Port only for Charge Type-A 2.0 x 1 USB Port only for Charge
interface (2A/5V) (5V/1A Power output) Server & Workstation (1A@5V) Server & Workstation

LAN Control -- -- --
Wireless Display Yes (Android, Windows 10) Yes (Android, Windows 10) --
Internal Memory -- -- --
Mechanical Tripod Socket Yes Yes Yes
Design Supporting Stand Yes, two steps Yes, two steps --
Security Kensington lock Yes Kensington lock Yes
Physical Dimension(WxHxD) 250 x 75 x 210mm 224 x 190 x 142mm 83 x 29 x 110mm
Dimension
Box Dimension (WxHxD) 295 x 80 x 255mm 220 x 138 x 189mm Mini / Stick PC 170 x 135 x 95mm Mini / Stick PC
Net Weight (Esti.) 1.8kg 497g 307g
Weight
Gross Weight (Esti.) 3.5kg 1.6kg 880g
Operating Temperature 0˚C ~ 40˚C 0˚C ~ 40˚C 0˚C ~ 40˚C
Operating Humidity 20 ~ 90% 20 ~ 90% 20 ~ 90%
Carrying bag, HDMI Cable, Carrying bag, HDMI Cable, HDMI cable,
Adapter, Power Cord, Adapter, Power Cord, Carrying bag, Power
Accessories Remote Control, Remote Control, QSG, Adapter, AC plug,
QSG, Warranty Card Warranty Card Warranty Card,
Quick Start Guide Peripherals
UL, CB, CE RED, FCC, ID, CCC, NCC, CU, FTA, RCM, CB, CE, FCC, ERP, IC, CU/EAC, FTA, RCM, VCCI, CB, CE, FCC, VCCI, CU, C-Tick,
Compliance and Standards
VCCI, IDMA, MIC, BSMI, IEC62471, CEC, IC IEC62471, MIC, CCC, BSMI, NCC, CEC, Reach, RoHS CCC, PSE, IEC62471, CEC
Peripherals
ASUSWORLD 241
