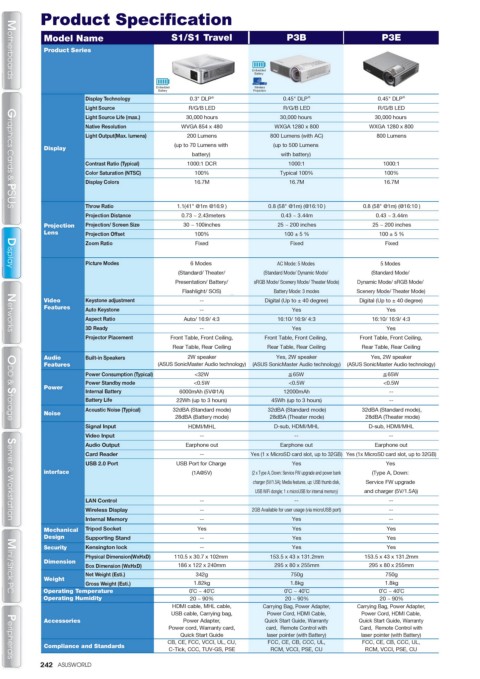

Model Name S1/S1 Travel P3B P3E
Product Series Motherboards

Embedded
Battery
Motherboards
Embedded Wireless
Battery Projection
Display Technology 0.3" DLP ® 0.45" DLP ® 0.45" DLP ®
Light Source R/G/B LED R/G/B LED R/G/B LED
Light Source Life (max.) 30,000 hours 30,000 hours 30,000 hours
Native Resolution WVGA 854 x 480 WXGA 1280 x 800 WXGA 1280 x 800
Light Output(Max. lumens) 200 Lumens 800 Lumens (with AC) 800 Lumens
(up to 70 Lumens with (up to 500 Lumens
Display
battery) with battery)
Contrast Ratio (Typical) 1000:1 DCR 1000:1 1000:1
Color Saturation (NTSC) 100% Typical 100% 100%
Display Colors 16.7M 16.7M 16.7M

Throw Ratio 1.1(41" @1m @16:9 ) 0.8 (58" @1m) (@16:10 ) 0.8 (58" @1m) (@16:10 )
Graphics Cards & PSUS
Graphics Cards & PSUS
Projection Distance 0.73 ~ 2.43meters 0.43 ~ 3.44m 0.43 ~ 3.44m
Projection Projection/ Screen Size 30 ~ 100inches 25 ~ 200 inches 25 ~ 200 inches
Lens Projection Offset 100% 100 ± 5 % 100 ± 5 %
Zoom Ratio Fixed Fixed Fixed

Picture Modes 6 Modes AC Mode: 5 Modes 5 Modes
Display
Display
(Standard/ Theater/ (Standard Mode/ Dynamic Mode/ (Standard Mode/
Presentation/ Battery/ sRGB Mode/ Scenery Mode/ Theater Mode) Dynamic Mode/ sRGB Mode/
Flashlight/ SOS) Battery Mode: 3 modes Scenery Mode/ Theater Mode)
Video Keystone adjustment -- Digital (Up to ± 40 degree) Digital (Up to ± 40 degree)
Features Auto Keystone -- Yes Yes
Aspect Ratio Auto/ 16:9/ 4:3 16:10/ 16:9/ 4:3 16:10/ 16:9/ 4:3
3D Ready -- Yes Yes
Networks
Networks
Projector Placement Front Table, Front Ceiling, Front Table, Front Ceiling, Front Table, Front Ceiling,
Rear Table, Rear Ceiling Rear Table, Rear Ceiling Rear Table, Rear Ceiling
Audio Built-in Speakers 2W speaker Yes, 2W speaker Yes, 2W speaker
Features (ASUS SonicMaster Audio technology) (ASUS SonicMaster Audio technology) (ASUS SonicMaster Audio technology)
Power Consumption (Typical) <32W ≦ 65W ≦ 65W
Power Standby mode <0.5W <0.5W <0.5W
Power ODD & Storage
Internal Battery 6000mAh (5V@1A) 12000mAh --
Battery Life 22Wh (up to 3 hours) 45Wh (up to 3 hours) --
Acoustic Noise (Typical) 32dBA (Standard mode) 32dBA (Standard mode) 32dBA (Standard mode),
Noise
28dBA (Battery mode) 28dBA (Theater mode) 28dBA (Theater mode)
ODD & Storage
Signal Input HDMI/MHL D-sub, HDMI/MHL D-sub, HDMI/MHL
Video Input -- -- --
Audio Output Earphone out Earphone out Earphone out
Card Reader -- Yes (1 x MicroSD card slot, up to 32GB) Yes (1x MicroSD card slot, up to 32GB)
USB 2.0 Port USB Port for Charge Yes Yes
interface (1A@5V) (2 x Type A, Down: Service FW upgrade and power bank (Type A, Down:
charger (5V/1.5A); Media features, up: USB thumb disk, Service FW upgrade
USB WiFi dongle; 1 x microUSB for internal memory) and charger (5V/1.5A))
LAN Control -- -- --
Wireless Display -- 2GB Available for user usage (via microUSB port) --
Internal Memory -- Yes --
Server & Workstation
Server & Workstation
Mechanical Tripod Socket Yes Yes Yes
Design Supporting Stand -- Yes Yes
Security Kensington lock -- Yes Yes
Physical Dimension(WxHxD) 110.5 x 30.7 x 102mm 153.5 x 43 x 131.2mm 153.5 x 43 x 131.2mm
Dimension
Box Dimension (WxHxD) 186 x 122 x 240mm 295 x 80 x 255mm 295 x 80 x 255mm
Net Weight (Esti.) 342g 750g 750g
Weight
Gross Weight (Esti.) 1.82kg 1.8kg 1.8kg
Operating Temperature 0˚C ~ 40˚C 0˚C ~ 40˚C 0˚C ~ 40˚C
Mini / Stick PC
Mini / Stick PC
Operating Humidity 20 ~ 90% 20 ~ 90% 20 ~ 90%
HDMI cable, MHL cable, Carrying Bag, Power Adapter, Carrying Bag, Power Adapter,
USB cable, Carrying bag, Power Cord, HDMI Cable, Power Cord, HDMI Cable,
Accessories Power Adapter, Quick Start Guide, Warranty Quick Start Guide, Warranty
Power cord, Warranty card, card, Remote Control with Card, Remote Control with
Quick Start Guide laser pointer (with Battery) laser pointer (with Battery)
CB, CE, FCC, VCCI, UL, CU, FCC, CE, CB, CCC, UL, FCC, CE, CB, CCC, UL,
Compliance and Standards
C-Tick, CCC, TUV-GS, PSE RCM, VCCI, PSE, CU RCM, VCCI, PSE, CU
Peripherals
Peripherals
