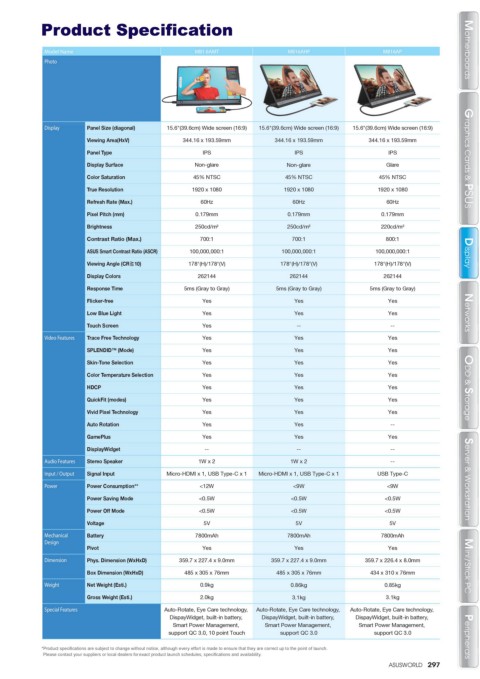

Model Name MB1 6AMT MB16AHP Motherboards MB16AP Motherboards

Display Panel Size (diagonal) 15.6"(39.6cm) Wide screen (16:9) 15.6"(39.6cm) Wide screen (16:9) 15.6"(39.6cm) Wide screen (16:9)
Viewing Area(HxV) 344.16 x 193.59mm 344.16 x 193.59mm 344.16 x 193.59mm
Panel Type IPS IPS IPS
Display Surface Non-glare Non-glare Graphics Cards & PSUS Glare Graphics Cards & PSUS
Color Saturation 45% NTSC 45% NTSC 45% NTSC
True Resolution 1920 x 1080 1920 x 1080 1920 x 1080
Refresh Rate (Max.) 60Hz 60Hz 60Hz
Pixel Pitch (mm) 0.179mm 0.179mm 0.179mm
Brightness 250cd/m² 250cd/m² 220cd/m²
Contrast Ratio (Max.) 700:1 700:1 800:1
ASUS Smart Contrast Ratio (ASCR) 100,000,000:1 100,000,000:1 Display 100,000,000:1 Display
Viewing Angle (CR≧10) 178°(H)/178°(V) 178°(H)/178°(V) 178°(H)/178°(V)
Display Colors 262144 262144 262144
Response Time 5ms (Gray to Gray) 5ms (Gray to Gray) 5ms (Gray to Gray)
Flicker-free Yes Yes Yes
Low Blue Light Yes Yes Networks Yes Networks
Touch Screen Yes -- --
Video Features Trace Free Technology Yes Yes Yes
SPLENDID™ (Mode) Yes Yes Yes
Skin-Tone Selection Yes Yes Yes
Color Temperature Selection Yes Yes Yes
HDCP Yes Yes ODD & Storage Yes ODD & Storage
QuickFit (modes) Yes Yes Yes
Vivid Pixel Technology Yes Yes Yes
Auto Rotation Yes Yes --
GamePlus Yes Yes Yes
DisplayWidget -- -- --
Audio Features Stereo Speaker 1W x 2 1W x 2 --
Input / Output Signal Input Micro-HDMI x 1, USB Type-C x 1 Micro-HDMI x 1, USB Type-C x 1 Server & Workstation USB Type-C Server & Workstation
Power Power Consumption** <12W <9W <9W
Power Saving Mode <0.5W <0.5W <0.5W
Power Off Mode <0.5W <0.5W <0.5W
Voltage 5V 5V 5V
Mechanical Battery 7800mAh 7800mAh 7800mAh
Design
Pivot Yes Yes Yes
Dimension Phys. Dimension (WxHxD) 359.7 x 227.4 x 9.0mm 359.7 x 227.4 x 9.0mm 359.7 x 226.4 x 8.0mm Mini / Stick PC
Box Dimension (WxHxD) 485 x 305 x 76mm 485 x 305 x 76mm 434 x 310 x 76mm
Weight Net Weight (Esti.) 0.9kg 0.86kg 0.85kg
Mini / Stick PC
Gross Weight (Esti.) 2.0kg 3.1kg 3.1kg
Special Features Auto-Rotate, Eye Care technology, Auto-Rotate, Eye Care technology, Auto-Rotate, Eye Care technology,
DispayWidget, built-in battery, DispayWidget, built-in battery, DispayWidget, built-in battery,
Smart Power Management, Smart Power Management, Smart Power Management,
support QC 3.0, 10 point Touch support QC 3.0 Peripherals support QC 3.0 Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
ASUSWORLD 297
