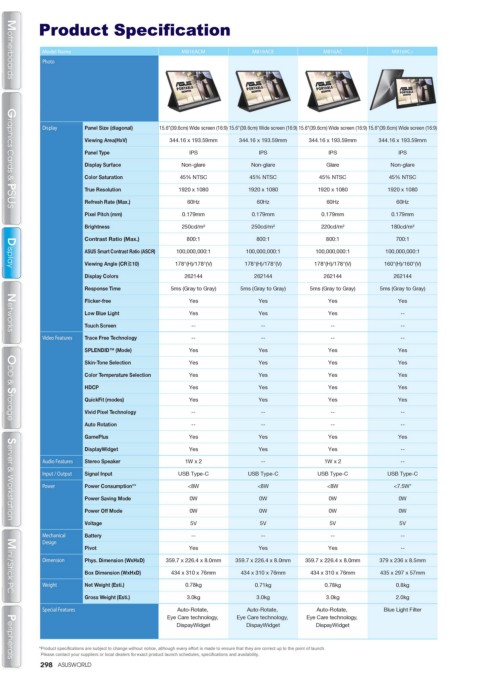

Page 300 - ASUS_WORLD_134_ebook

Model Name Motherboards MB16ACM MB16ACE MB16AC MB169C+

Motherboards

Display Panel Size (diagonal) 15.6"(39.6cm) Wide screen (16:9) 15.6"(39.6cm) Wide screen (16:9) 15.6"(39.6cm) Wide screen (16:9) 15.6"(39.6cm) Wide screen (16:9)
Viewing Area(HxV) 344.16 x 193.59mm 344.16 x 193.59mm 344.16 x 193.59mm 344.16 x 193.59mm
Panel Type IPS IPS IPS IPS
Display Surface Non-glare Non-glare Glare Non-glare
Color Saturation 45% NTSC 45% NTSC 45% NTSC 45% NTSC
True Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Refresh Rate (Max.) 60Hz 60Hz 60Hz 60Hz
Graphics Cards & PSUS
Graphics Cards & PSUS
Pixel Pitch (mm) 0.179mm 0.179mm 0.179mm 0.179mm
Brightness 250cd/m² 250cd/m² 220cd/m² 180cd/m²
Contrast Ratio (Max.) 800:1 800:1 800:1 700:1
ASUS Smart Contrast Ratio (ASCR) 100,000,000:1 100,000,000:1 100,000,000:1 100,000,000:1
Viewing Angle (CR≧10) 178°(H)/178°(V) 178°(H)/178°(V) 178°(H)/178°(V) 160°(H)/160°(V)
Display
Display
Display Colors 262144 262144 262144 262144
Response Time 5ms (Gray to Gray) 5ms (Gray to Gray) 5ms (Gray to Gray) 5ms (Gray to Gray)
Flicker-free Yes Yes Yes Yes
Low Blue Light Yes Yes Yes --
Touch Screen -- -- -- --
Networks
Networks
Video Features Trace Free Technology -- -- -- --
SPLENDID™ (Mode) Yes Yes Yes Yes
Skin-Tone Selection Yes Yes Yes Yes
Color Temperature Selection Yes Yes Yes Yes
HDCP ODD & Storage Yes Yes Yes Yes
QuickFit (modes) Yes Yes Yes Yes
Vivid Pixel Technology -- -- -- --
ODD & Storage
Auto Rotation -- -- -- --
GamePlus Yes Yes Yes Yes
DisplayWidget Yes Yes Yes --
Audio Features Stereo Speaker 1W x 2 -- 1W x 2 --
Input / Output Signal Input USB Type-C USB Type-C USB Type-C USB Type-C
Power Power Consumption** <8W <8W <8W <7.5W*
Power Saving Mode 0W 0W 0W 0W
Power Off Mode 0W 0W 0W 0W
Server & Workstation
Voltage 5V 5V 5V 5V
Server & Workstation
Mechanical Battery -- -- -- --
Design
Pivot Yes Yes Yes --
Dimension Phys. Dimension (WxHxD) 359.7 x 226.4 x 8.0mm 359.7 x 226.4 x 8.0mm 359.7 x 226.4 x 8.0mm 379 x 236 x 8.5mm
Box Dimension (WxHxD) 434 x 310 x 76mm 434 x 310 x 76mm 434 x 310 x 76mm 435 x 297 x 57mm
Weight Net Weight (Esti.) 0.78kg 0.71kg 0.78kg 0.8kg
Mini / Stick PC
Mini / Stick PC
Gross Weight (Esti.) 3.0kg 3.0kg 3.0kg 2.0kg
Special Features Auto-Rotate, Auto-Rotate, Auto-Rotate, Blue Light Filter
Eye Care technology, Eye Care technology, Eye Care technology,
DispayWidget DispayWidget DispayWidget

*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
Peripherals
Peripherals
298 ASUSWORLD
