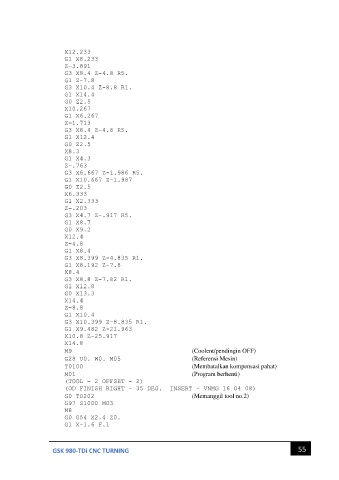

X12.233
G1 X8.233
Z-3.891
G3 X8.4 Z-4.8 R5.
G1 Z-7.8
G3 X10.4 Z-8.8 R1.
G1 X14.4
G0 Z2.5
X10.267
G1 X6.267
Z-1.713
G3 X8.4 Z-4.8 R5.
G1 X12.4
G0 Z2.5
X8.3
G1 X4.3
Z-.763
G3 X6.667 Z-1.986 R5.
G1 X10.667 Z-1.987
G0 Z2.5
X6.333
G1 X2.333
Z-.203
G3 X4.7 Z-.917 R5.
G1 X8.7
G0 X9.2
X12.4
Z-4.8
G1 X8.4
G3 X8.399 Z-4.835 R1.
G1 X8.192 Z-7.8
X8.4
G3 X8.8 Z-7.82 R1.
G1 X12.8
G0 X13.3
X14.4
Z-8.8
G1 X10.4
G3 X10.399 Z-8.835 R1.
G1 X9.482 Z-21.963
X10.8 Z-25.917
X14.8
M9 (Coolent/pendingin OFF)
G28 U0. W0. M05 (Referensi Mesin)
T0100 (Membatalkan kompensasi pahat)
M01 (Program berhenti)
(TOOL - 2 OFFSET - 2)
(OD FINISH RIGHT - 35 DEG. INSERT - VNMG 16 04 08)
G0 T0202 (Memanggil tool no.2)
G97 S1000 M03
M8
G0 G54 X2.4 Z0.
G1 X-1.6 F.1
