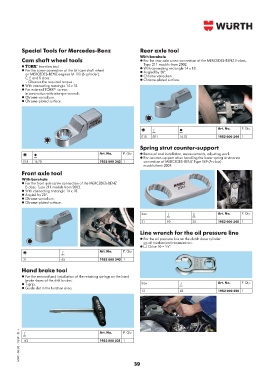

Special Tools for Mercedes-Benz Rear axle tool
With borehole
Cam shaft wheel tools For the rear axle screw connection of the MERCEDES-BENZ E-class,
Type 211 models from 2002.
h Insertion tool
For the screw connection of the left cam shaft wheel With connecting rectangle 14 x 18.
Angled by 20°.
on MERCEDES-BENZ engines M 112 (6-cylinder), Chrome vanadium.
C, E and S class. Chrome-plated surface.
- Observe the required torque -
With connecting rectangle 14 x 18.
®
For external TORX screws
in connection with a torque wrench.
Chrome vanadium.
Chrome-plated surface.

e K h Art. No. P. Qty.

E18 59.1 16.70 1952 000 344 1
Spring strut counter-support

e h Art. No. P. Qty. Removal and installation, measurements, adjusting work.
For counter-support when handling the lower spring strut screw
E18 16.70 1952 000 342 1 connection of MERCEDES-BENZ Type 169 (A-class)
models from 2004.
Front axle tool
With borehole
For the front axle screw connection of the MERCEDES-BENZ
E-class, Type 211 models from 2002.
With connecting rectangle 14 x 18.
Angled by 20°.
Chrome vanadium.
Chrome-plated surface.

Size K 5 Art. No. P. Qty.
21 90 30 1952 000 345 1

Line wrench for the oil pressure line
For the oil pressure line on the clutch slave cylinder
on all mechanical transmissions.
3
j Drive 10 = ⁄ 8”.
c K Art. No. P. Qty.
21 65 1952 000 343 1

Hand brake tool
For the removal and installation of the retaining springs on the hand
brake shoes of the disk brakes.
T-grip. Size K Art. No. P. Qty.
Guide slot in the function area.
12 48 1952 000 350 1

MWF - 06/08 - 11539 - © • K Art. No. P. Qty.

142
1952 000 031 1

39
