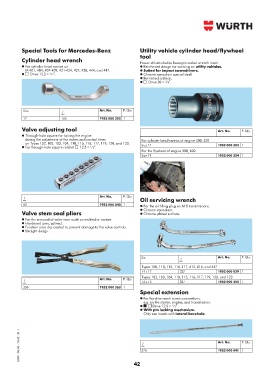

Special Tools for Mercedes-Benz Utility vehicle cylinder head/flywheel
tool
Cylinder head wrench
Power-driven double hexagon socket wrench insert
For cylinder head screws on Reinforced design for working on utility vehicles.
M 401, 404, 407-409, 421-424, 427, 428, 444, and 447. Suited for impact screwdrivers.
1
j Drive 12.5 = ⁄ 2”. Chrome vanadium special steel.
Burnished surface.
j Drive 20 = ⁄ 4”.
3

Size Art. No. P. Qty.
K
17 165 1952 000 352 1

Valve adjusting tool Art. No. P. Qty.
Through-hole square for turning the engine
during the adjustment of the valves and control times For cylinder head screws of engine 400, 420
on Types 102, 102, 103, 104, 110, 115, 116, 117, 119, 120, and 123.
For through-hole square ratchet j 12.5 = ⁄ 2”. Size 17 1952 000 353 1
1
For the flywheel of engine 300, 400
Size 19 1952 000 354 1

Art. No. P. Qty.
K Oil servicing wrench
80 1952 000 040 1
For the oil filling plug on M 8 transmissions.
Chrome vanadium.
Valve stem seal pliers Chrome-plated surface.
For the removal of valve stem seals on multivalve motors.
Hardened jaws, splined.
Function area dip-coated to prevent damage to the valve controls.
Straight design.

Siz Art. No. P. Qty.
K
Types 100, 110, 115, 116, 117, 615, 616, and 617
14 x 17 237 1952 000 039 1
Types 102, 103, 104, 110, 115, 116, 117, 119, 120, and 123
Art. No. P. Qty.
K 14 x 13 287 1952 000 355 1
250 1952 000 363 1
Special extension
For hard-to-reach screw connections,
e.g. on the starter, engine, and transmission.
1
i j Drive 12.5 = ⁄ 2”.
With pin locking mechanism.
Only use inserts with lateral borehole.

MWF - 06/08 - 11542 - © • K Art. No. P. Qty.

1952 000 041 1
575
