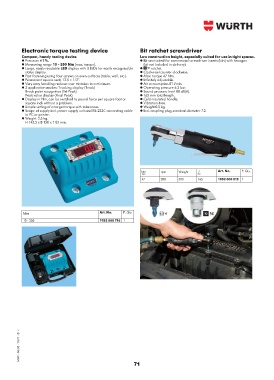

Electronic torque testing device Bit ratchet screwdriver
Compact, handy testing device Low construction height, especially suited for use in tight spaces.
Precision ±1%. Bit seat suited for commercial screwdriver inserts (bits) with hexagon
Measuring range 10 - 350 Nm (max. torque). (bit not included in delivery).
Large, easily readable LED display with 3 LEDs for easily recognizable 2 ratchet.
status display. Clockwise/counter-clockwise.
Fast fastening using four screws on even surfaces (table, wall, etc.). Max. torque 47 Nm.
Permanent square seat, 12.5 = 1/2”. Infinitely adjustable.
Very easy handling reduces user mistakes to a minimum. Air consumption 81 l/min.
3 application modes: Tracking display (Track) Operating pressure 6.3 bar.
Break point recognition (1st Peak) Sound pressure level 88 dB(A).
Peak value display (Final Peak). 165 mm total length.
Display in Nm, can be switched to pound force per square foot or Cold-insulated handle.
square inch without a problem. Vibration-free.
Simple setting of a target torque with tolerances. Weight 0.5 kg.
Scope of supply incl. power supply unit and RS-232C connecting cable Incl. coupling plug, nominal diameter 7.2.
to PC or printer.
Weight: 2.5 kg.
H 145.5 x B 150 x T 85 mm.

$ rpm Weight K Art. No. P. Qty.
47 200 500 165 1952 000 812 1

! Art. No. P. Qty.
10 - 350 1952 000 716 1

MWF - 06/08 - 11571 - © •

71
