MAINTENANCE

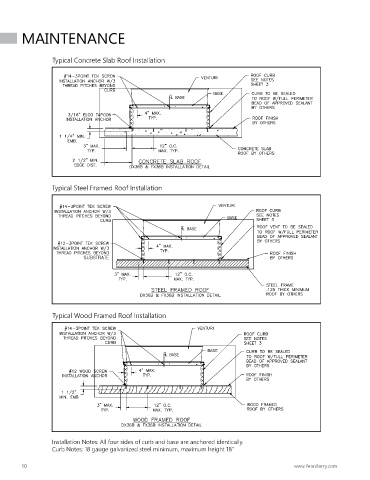

                  Typical Concrete Slab Roof Installation

























                  Typical Steel Framed Roof Installation
























                  Typical Wood Framed Roof Installation
























                  Installation Notes: All four sides of curb and base are anchored identically.
                  Curb Notes: 18 gauge galvanized steel minimum, maximum height 18”
