WHEEL ALIGNMENT PROCEDURES

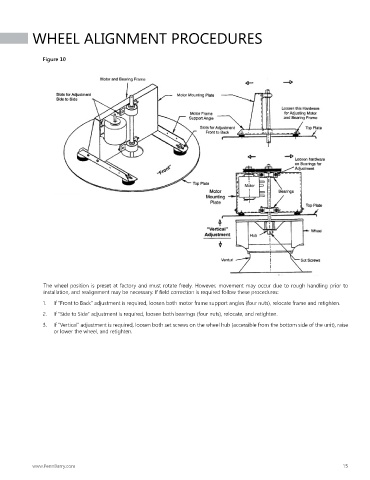

               Figure 10













































               The wheel position is preset at factory and must rotate freely. However, movement may occur due to rough handling prior to
               installation, and realignment may be necessary. If field correction is required follow these procedures:

               1.   If “Front to Back” adjustment is required, loosen both motor frame support angles (four nuts), relocate frame and retighten.
               2.  If “Side to Side” adjustment is required, loosen both bearings (four nuts), relocate, and retighten.
               3.  If “Vertical” adjustment is required, loosen both set screws on the wheel hub (accessible from the bottom side of the unit), raise
                   or lower the wheel, and retighten.
